LED drivers
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED drivers |
| Brand | Tridonic |
| ETIM | EC002710 |
| Width | 30 mm |
| Height | 21 mm |
| Housing | Metal housing |
| Length | 280 mm |
| Output voltage | 45-220 V |
| Output power | 8-40 W |
| Degree of protection (IP) | IP20 |
| Output current | 75-400 mA |
| Suitable for constant current | Yes |
| Suitable for constant voltage | No |
| No dim function | Yes |
Packing details
| Packing level 1 | 9006210764382, 9006210764382 |
Other Technical data
| Protection class | I |
| Model | Static |
| Diameter | 36.62 mm |
| Suitable for outdoor use | No |
| Suitable for DC-voltage (primary side) | Yes |
| Constant light output (CLO) | Yes |
| IFTTT support available | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible with Casambi | No |
Description

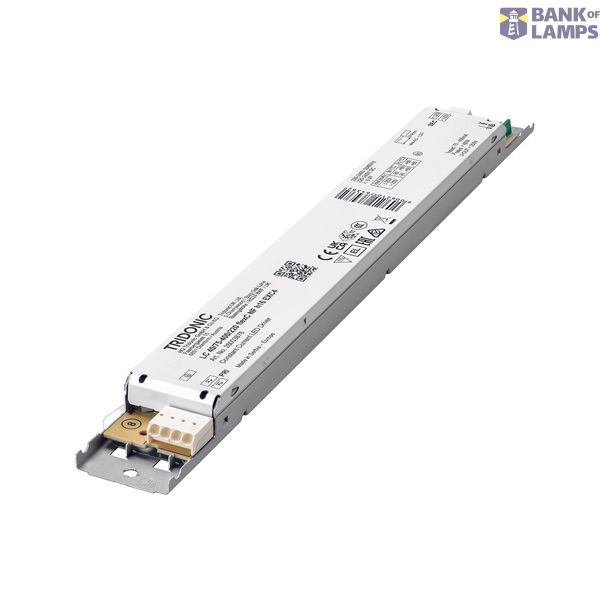

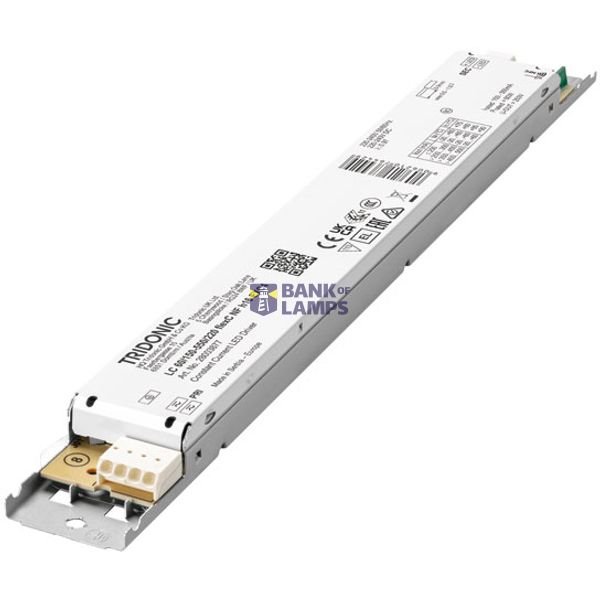

Constant current LED driver for luminaire installation ¦ For class I luminaires ¦ Adjustable output current between 75 and 400 mA via NFC ¦ Max. output power 40 W ¦ Up to 94 % efficiency ¦ Nominal lifetime up to 100,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Low profile metal casing with white cover ¦ Only 16 mm housing height ¦ Type of protection IP20 ¦ Near field communication (NFC) ¦ Terminal blocks: 0° push terminals ¦ Adjustable output current in 1-mA-steps (NFC) ¦ Constant light output function (eCLO) ¦ Protective features (overtemperature, short-circuit, overload, no-load) ¦ Intelligent Voltage Guard (overvoltage and undervoltage monitoring) ¦ Suitable for emergency escape lighting systems acc. to EN 50172 ¦ Flexible configuration via companionSUITE ¦ Support NFC multiple programming (full carton box) ¦ Application-oriented operating window for maximum compatibility ¦ Best energy savings due to high efficiency ¦ Reliability proven by lifetime up to 100,000 h and 5 years guarantee (conditions at www.tridonic.com) ¦ For linear/area lighting in office applications
