LED drivers
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED drivers |
| Brand | Tridonic |
| ETIM | EC002710 |
| Width | 34 mm |
| Height | 38 mm |
| Length | 150 mm |
| Output voltage | 0 V |
| Output power | 29.4 W |
| Degree of protection (IP) | IP20 |
| Output current | 700 mA |
| No dim function | Yes |
Packing details
| Packing level 1 | 9006210747347, 9006210747347 |
Other Technical data
| Protection class | II |
| Suitable for outdoor use | No |
| Suitable for DC-voltage (primary side) | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
Description

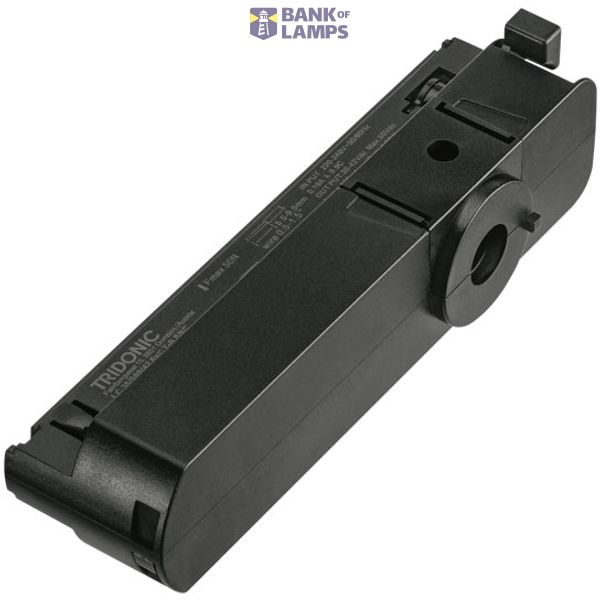

Constant current / in-track LED driver ¦ Accessory ACU ALU NIPPLE M10x1 for mounting the luminaire head included, but not pre-assembled ¦ Compatible 1-phase system in-tracks, see data sheet chapter 3.8 ¦ For luminaires of protection class II ¦ Temperature protection as per EN 61347-2-13 C5e ¦ Max. output power 30 W ¦ Up to 89 % efficiency ¦ Nominal lifetime up to 100,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Casing: polycarbonate, black, white or grey ¦ Type of protection IP20 ¦ Overload protection ¦ Short-circuit protection ¦ No-load protection ¦ For spot light in retail and hospitality application
