LED drivers
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED drivers |
| Brand | Tridonic |
| ETIM | EC002710 |
| Width | 61 mm |
| Height | 37.8 mm |
| Housing | Metal housing |
| Length | 158 mm |
| Output voltage | 22-72 V |
| Output power | 23-75 W |
| Degree of protection (IP) | IP67 |
| Output current | 1050 mA |
| Suitable for constant current | Yes |
| Suitable for constant voltage | No |
| No dim function | Yes |
Packing details
| Packing level 1 | 9006210676074, 9006210676074 |
Other Technical data
| Protection class | I |
| Model | Static |
| Diameter | 71.34 mm |
| Suitable for outdoor use | Yes |
| Suitable for DC-voltage (primary side) | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible with Casambi | No |
Description

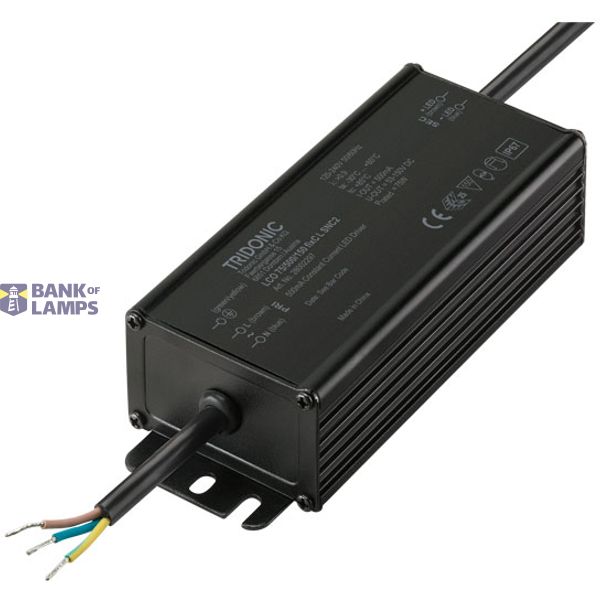

Independent fixed output LED driver ¦ Constant current LED driver ¦ Output current 500, 700, 1,050 or 1,400 mA ¦ Up to 92 % efficiency ¦ Ambient temperature range of -40 ... +50 °C ¦ Max. casing temperature tc of 85 °C ¦ The delivery time is 13 weeks. ¦ Nominal lifetime up to 100,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Casing: metal, black ¦ Type of protection IP67 ¦ Connection: cable 300 mm ¦ Protective features (overtemperature, short-circuit, overload, no-load) ¦ Wide voltage input 100 – 240 V ¦ Best energy savings due to low stand-by losses and high efficiency ¦ Suitable for mains voltage peaks (burst/surge) up to 6 kV ¦ Double or reinforced insulation ¦ High number of drivers on 16 A (B) automatic circuit breakers ¦ Extended vibration damping ¦ The LED driver is designed for a lifetime stated above under reference conditions and with a failure probability of less than 10 % ¦ The wide product range offers common currents for a cost effective luminaire manufacturing ¦ For parking lot, high bay and street applications ¦ For linear/area lighting in industry applications
Alternative EAN
Order only
51,82 €
EAN: 9006210748146
MPN: 28003555
Package: 1
