LED drivers
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED drivers |
| Brand | Tridonic |
| ETIM | EC002710 |
| Width | 43 mm |
| Height | 30 mm |
| Length | 97 mm |
| Output voltage | 0 V |
| Output power | 20-36 W |
| Degree of protection (IP) | IP20 |
| Output current | 800 mA |
| No dim function | Yes |
Packing details
| Packing level 1 | 9006210674414, 9006210674414 |
Other Technical data
| Suitable for outdoor use | No |
| Suitable for DC-voltage (primary side) | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
Description

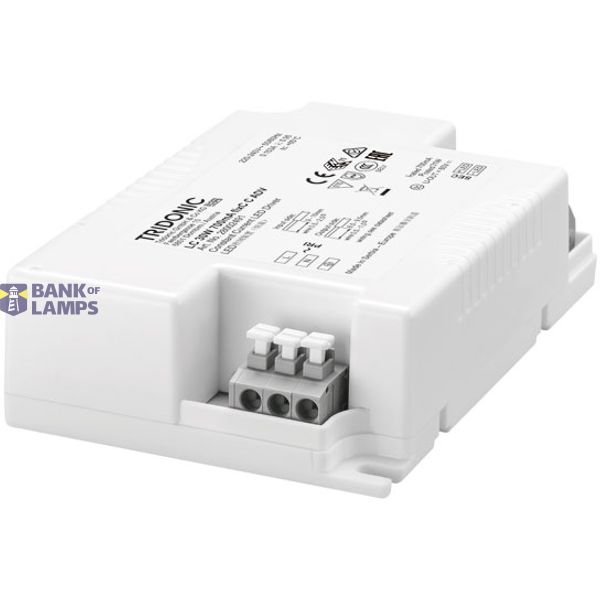

Fixed output LED driver ¦ Can be either used built-in or independent with clip-on strain-relief (see accessory) ¦ Independent LED driver with cable clamps ¦ Constant current LED driver ¦ For luminaires of protection class I and protection class II ¦ Temperature protection as per EN 61347-2-13 C5e ¦ Output current 600, 700, 800 or 900 mA ¦ Max. output power 26.5, 31, 36 or 40.5 W ¦ Nominal lifetime up to 50,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Casing: polycarbonate, white ¦ Type of protection IP20 ¦ Overtemperature protection ¦ Overload protection ¦ Short-circuit protection ¦ No-load protection ¦ Surge protection voltage 1 kV (L to N) ¦ Surge protection voltage 2 kV (L/N to earth)
