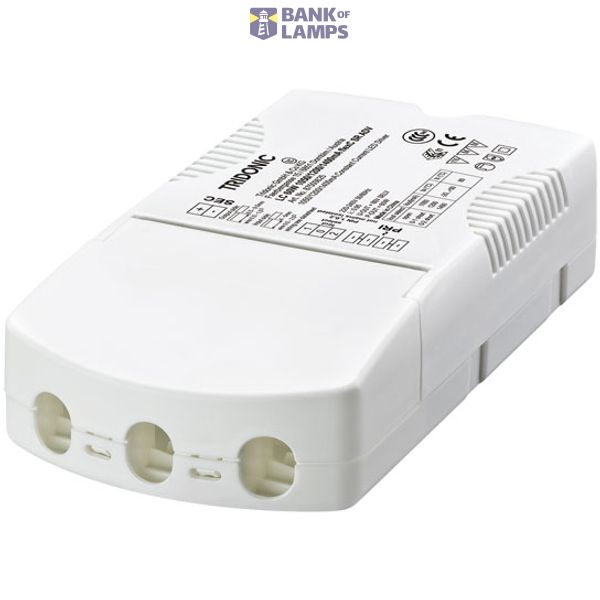

LED drivers
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED drivers |
| Brand | Tridonic |
| ETIM | EC002710 |
| Width | 82 mm |
| Height | 34 mm |
| Length | 159 mm |
| Output voltage | 0 V |
| Output power | 36.4-42 W |
| Degree of protection (IP) | IP20 |
| Output current | 700-1050 mA |
| No dim function | Yes |
Packing details
| Packing level 1 | 9006210631752 |
| Packing level 2 | 9006210631752 |
Other Technical data
| Protection class | II |
| Suitable for outdoor use | No |
| Suitable for DC-voltage (primary side) | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
Description
Independent fixed output LED driver ¦ Adjustable output current between 700, 900 and 1,050 mA ¦ Max. output power 42 W ¦ Up to 88 % efficiency ¦ Nominal lifetime up to 50,000 h ¦ For luminaires of protection class I and protection class II ¦ For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 ¦ Temperature protection as per EN 61347-2-13 C5e ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Casing: polycarbonate, white ¦ Type of protection IP20 ¦ Input terminals: 0° screw terminals ¦ Output terminals: 45° push terminals ¦ Overload protection ¦ Short-circuit protection ¦ No-load protection ¦ Overtemperature protection ¦ Burst protection voltage 1 kV ¦ Burst protection voltage 1 kV (L to N) ¦ Surge protection voltage 2 kV (L/N to earth) ¦ For spot light and downlight in retail and hospitality applications ¦ For panel light and area light in office and education application
