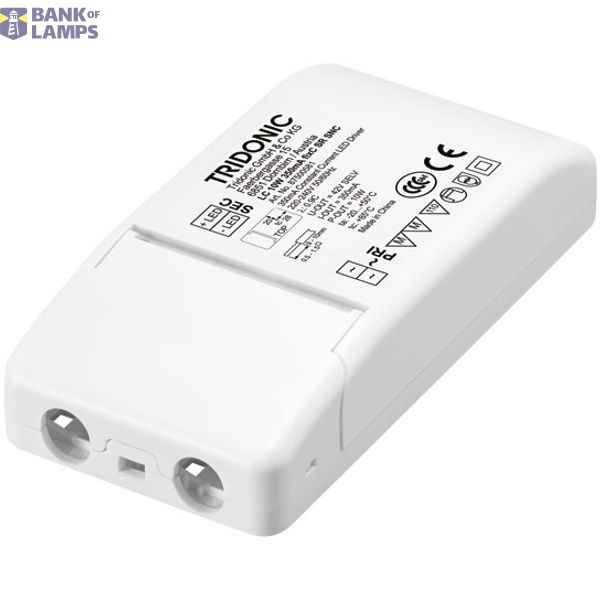

LED drivers
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED drivers |
| Brand | Tridonic |
| ETIM | EC002710 |
| Width | 51 mm |
| Height | 22 mm |
| Length | 102 mm |
| Output voltage | 0 V |
| Output power | 7-10 W |
| Degree of protection (IP) | IP20 |
| Output current | 350 mA |
| No dim function | Yes |
Packing details
| Packing level 1 | 9006210616179, 9006210616179 |
Other Technical data
| Protection class | II |
| Suitable for outdoor use | No |
| Suitable for DC-voltage (primary side) | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
Description
Independent LED driver with cable clamps ¦ Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids) ¦ For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711 ¦ Temperature protection as per EN 61347-2-13 C5e ¦ Output current 250, 350, 500 or 700 mA ¦ Max. output power 10 W ¦ KC approval mark for art. no.: 87500580, 87500581 and 87500582. ¦ Nominal lifetime up to 50,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Casing: polycarbonate, white ¦ Type of protection IP20 ¦ Push-in terminals ¦ 2 separate strain relief parts for input and output cables with highly robust clamps ¦ Overload protection ¦ Short-circuit protection ¦ No-load protection ¦ No output current overshoot at mains on/off
