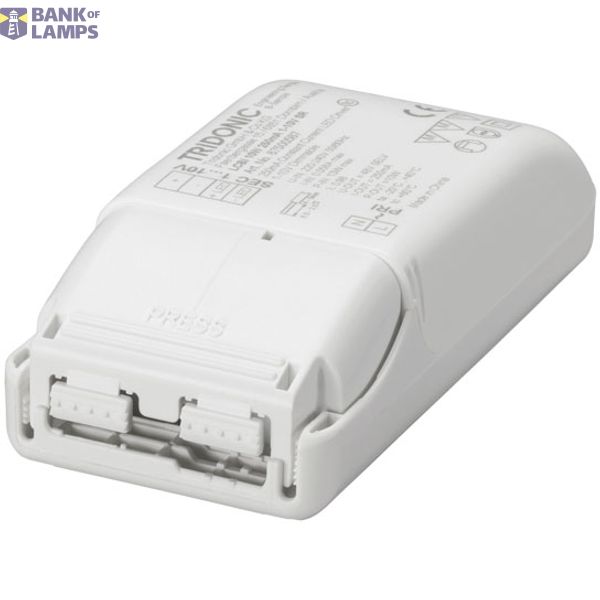

LED drivers
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED drivers |
| Brand | Tridonic |
| ETIM | EC002710 |
| Width | 30 mm |
| Height | 28 mm |
| Length | 425 mm |
| Output voltage | 0 V |
| Output power | 33-65 W |
| Degree of protection (IP) | IP20 |
| Output current | 150-400 mA |
| No dim function | No |
Packing details
| Packing level 1 | 9006210496634, 9006210496634 |
Other Technical data
| Suitable for outdoor use | No |
| Suitable for DC-voltage (primary side) | Yes |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | Yes |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | Yes |
Description
Dimmable constant current built-in LED driver, particularly suitable for industrial applications in tough enviromments such as cold warehouses or factories with elevated ambient temperatures ¦ The LED driver is designed for a lifetime stated above under reference conditions and with a failure probability of less than 10 % ¦ If being operated up to 50 °C ambient temperature for 100,000 h the LED driver offers a lower failure probability of less than 2.5 % ¦ Dimming range 1 to 100 % ¦ Output current adjustable between 150 – 400 mA ¦ Max. output power 65 W ¦ Suitable for mains voltage peaks (burst/surge) up to 4 kV ¦ Expanded temperature range of -40 ... +70 °C ¦ Nominal lifetime up to 100,000 h ¦ 8 years guarantee (conditions at www.tridonic.com) ¦ White slim metal casing ¦ Type of protection IP20 ¦ DALI Device Type 6 ¦ DSI ¦ switchDIM (with memory function) ¦ corridorFUNCTION ¦ Adjustable output current in 1-mA-steps (I-SELECT resistor or DALI) ¦ Power-up fading at AC ¦ Intelligent Temperature Guard (overtemperature protection) ¦ Short-circuit protection ¦ Overload protection ¦ Constant light output function ¦ Suitable for emergency escape lighting systems acc. to EN 50172 ¦ Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
