LED drivers
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | LED drivers |
| Brand | Tridonic |
| ETIM | EC002710 |
| Width | 63 mm |
| Height | 40.5 mm |
| Housing | Plastic housing |
| Length | 270 mm |
| Output voltage | 12 V |
| Output power | 15-150 W |
| Degree of protection (IP) | IP20 |
| Output current | 1250-12500 mA |
| Suitable for constant current | No |
| Suitable for constant voltage | Yes |
| No dim function | Yes |
Packing details
| Packing level 1 | 9006210346687, 9006210346687 |
| Packing level 2 | 9006210346687 |
Other Technical data
| Protection class | II |
| Model | Static |
| Diameter | 74.63 mm |
| Suitable for outdoor use | No |
| Suitable for DC-voltage (primary side) | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible with Casambi | No |
Description

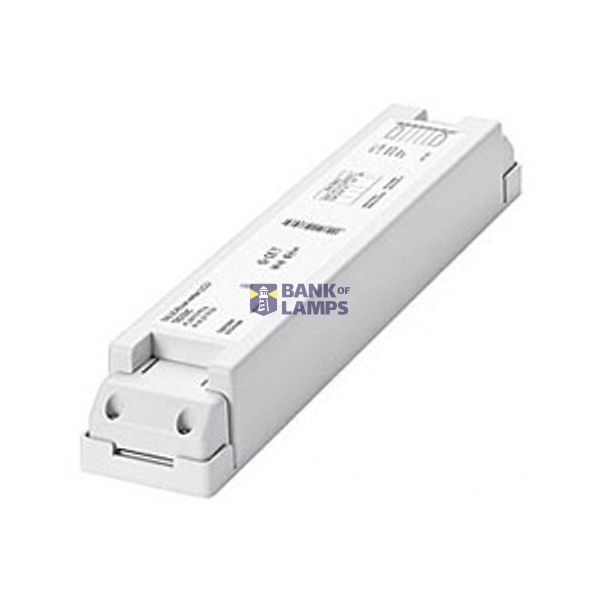

Constant voltage LED driver ¦ Universal input voltage range ¦ Constant output voltage ¦ Nominal lifetime up to 50,000 h (at ta 40 °C with a failure rate ≤ 0.2 % per 1,000 h) ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Complies with CLASS C from minimum to maximum load range according to EN 61000-3-2 ¦ High efficiency ¦ Low power loss ¦ Overtemperature and overload protection ¦ Short-circuit shutdown feature with automatic restart ¦ Protection class II, SELV ¦ Type of protection IP20 ¦ Plastic casing white
