LED DRIVER PHASE-CUT PERFORMANCE -18/220-240/350

Name: LED DRIVER PHASE-CUT PERFORMANCE -18/220-240/350
Brand: LEDVANCE
Price: 9.390 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

9,39 €

This price is valid until 16.01.26

Split box: 10,00 €

EAN: 4058075239838

MPN: 4058075239838

Package: 1

Box: 10

Estimate delivery time at our warehouse (approx.): 1-4 weeks

Technical Information

Item condition	New
Manufacture name	LED DRIVER PHASE-CUT PERFORMANCE -18/220-240/350
Brand	LEDVANCE
Categories	LED drivers
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 5015 00
Width	43 mm
Height	30 mm
Housing	Plastic housing
Length	130 mm
Output voltage	32-54 V
Output power	18 W
Degree of protection (IP)	IP20
Output current	350 mA
Suitable for constant current	Yes
Suitable for constant voltage	No
No dim function	No

Packing details

Packing level 1	4058075239838
Packing level 2	4058075239845
Packing level 3	4058075239838

Other Technical data

Protection class	II
Model	Dynamic
Suitable for outdoor use	No
Suitable for DC-voltage (primary side)	No
Constant light output (CLO)	No
IFTTT support available	No
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming GPRS	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	Yes
Dimming mains voltage modulation	No
Dimming phase cut-off	Yes
Dimming phase cut-on	Yes
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	Yes
Dimming DSI	No
Operation by Bluetooth	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No

Downloads

Others Product data sheet Instructions for use Declaration DOC CE (Declaration of conformity CE)

Description

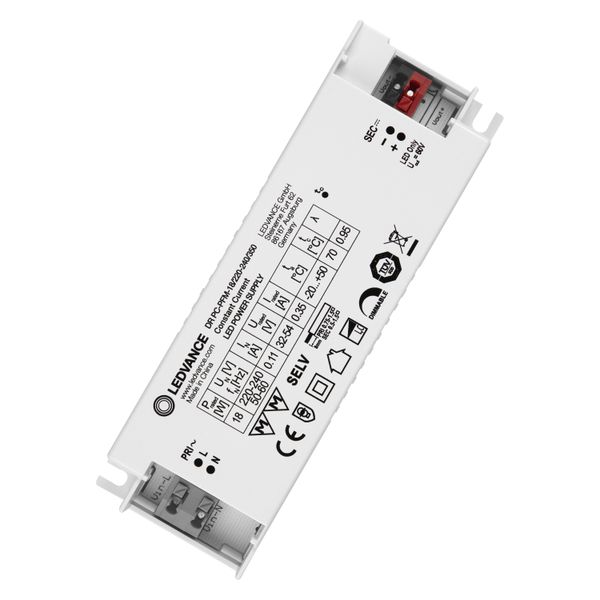

Constant current LED driver with phase-cut dimming interface. Product features: Available in 13 W, 18 W, 25 W and 35 W. Independent installation with optional Cable Clamp Kit. Dimmable on the leading edge and trailing edge. Dimmable from 10…100 %. Lifetime: up to 50,000 h (at max. tc temperature). Type of protection: IP20. Dedicated, constant output current. Low ripple current < 5%. Supply voltage: 220…240 V. Operating frequency: 50/60 Hz. Operated with less than 60 V: Safety extra-low voltage (SELV). Reversible overtemperature, overload, short-circuit and open-circuit protection. Product benefits: Enables installation with commonly used leading-edge and trailing-edge dimmers. 5 years guarantee. Slim housing for narrow installations. High efficiency and reliability. Areas of application: Suitable for LED luminaires and LED modules. Applicable for luminaires of protection classes I and II. For indoor SELV installations. Offices, shopping centers, hospitals, restaurants, hotels. Equipment / Accessories: Cable Clamp Kit to ensure propper strain relief.
