LED DRIVER DALI SUPERIOR -45/220-240/24
Order only
Price (excl. VAT):
32,75 €
Split box: 10,00 €
EAN: 4058075421820
MPN: 4058075421820
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
1-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | LED DRIVER DALI SUPERIOR -45/220-240/24 |
| Brand | LEDVANCE |
| Categories |
LED drivers
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |

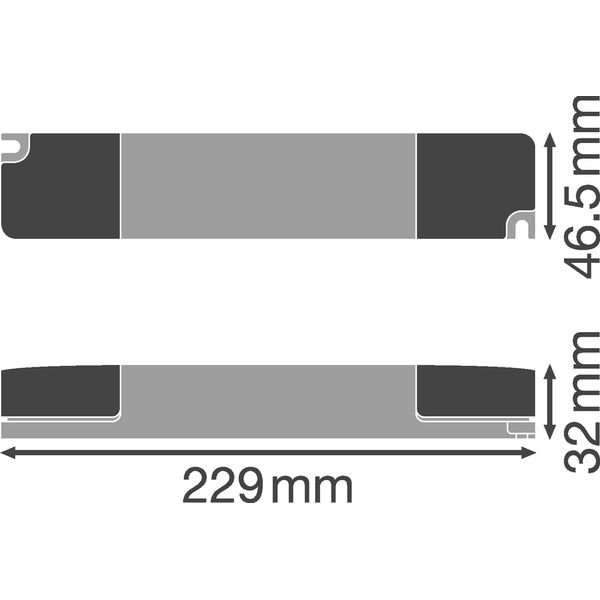

| Width | 47 mm |
| Height | 32 mm |
| Housing | Plastic housing |
| Length | 229 mm |
| Output voltage | 24 V |
| Output power | 45 W |
| Degree of protection (IP) | IP20 |
| Output current | 1880 mA |
| Suitable for constant current | No |
| Suitable for constant voltage | Yes |
| No dim function | No |
Packing details
| Packing level 1 | 4058075421820 |
| Packing level 2 | 4058075421837 |
| Packing level 3 | 4058075421820 |
Other Technical data
| Protection class | II |
| Model | Dynamic |
| Suitable for outdoor use | No |
| Suitable for DC-voltage (primary side) | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | Yes |
| Dimming Zigbee | No |
| Dimming with push-button | Yes |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
Downloads
Description
Constant voltage LED driver with DALI dimming interface. Product features: 1 channel DALI-2 certified LED driver. Cable clamp housing for independent mounting. Operated with Safety extra-low voltage (SELV): < 60 V. Type of protection: IP20. Product benefits: Quick and comfortable installation thanks to tool-less cable clamp concept. 5 years guarantee. Low flickering enables high light quality as well as good visual comfort. Push DIM application for easy control. Optimized matched to 24 V LED flexible strips. Areas of application: Cove lighting, even in tight spaces. Hotels, shops, hospitality, residential interiors. Museums, art galleries. Strip lighting in single and open-plan offices. Suitable for use in emergency lighting systems (DC capable).
