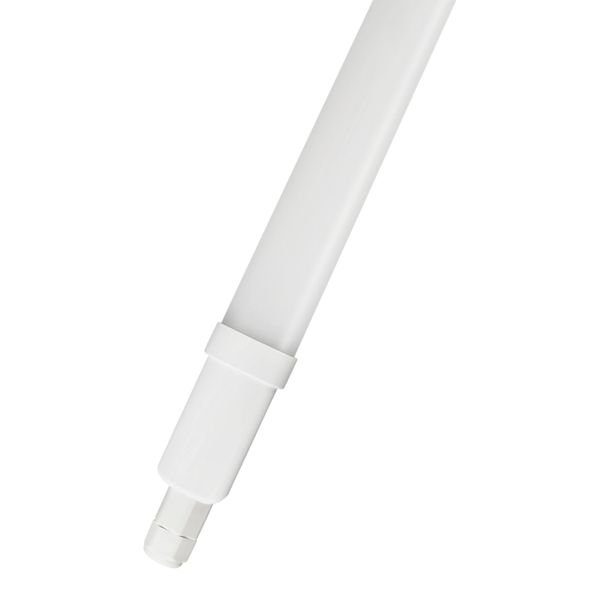

LED Batten Slim 600 18W 4000K IP65

Order only Not Available

Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition	New
Manufacture name	LED Batten Slim 600 18W 4000K IP65
Brand	Bailey
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Width	53 mm
Colour housing	White
Colour rendering index CRI	80-89
Length	721 mm
Height/depth	35 mm
Lamp type	LED not exchangeable
Impact strength	IK04
Nominal voltage	220-240 V
Degree of protection (IP)	IP65
Beam angle	Extreme wide beam >80°
Colour temperature	4000 K
Max. system power	18 W
Rated luminous flux according to IEC 62722-2-1	1980 lm
Luminaire efficacy	110 lm/W

Packing details

Packing level 1

8714681440285

Other Technical data

Protection class	II
Outer diameter	0 mm
Lamp holder	Other
Conductor cross section	1.5 mm²
Connection type	Push-in clamp
Voltage type	AC
With movement sensor	No
Suitable for lamp power	18 W
Type of grid	None
Type of control gear	LED operating device current-controlled
Built-in width	0 mm
Built-in diameter	0 mm
With light sensor	No
Suitable for suspended mounting	Yes
Number of poles	2
Housing material	Plastic
Built-in length	0 mm
Suitable for light line configuration	No
Suitable for emergency lighting	No
Light outlet	Direct
Light sharing	Symmetric
Material cover	Plastic, opal
With light source	Yes
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	Yes
Covering of the luminaire with thermally insulating material possible	No
Suitable for number of lamps	1
Suitable for wall mounting	Yes
Suitable for built-in mounting	No
With control gear	No
Suitable for workplace according to EN 12464-1	Yes
Suitable for surface mounting	No
Colour of light	White
With air slots	No
Type of wiring	Ending
Rated life time L70/B50 at 25 °C	20000 h
Rated life time L80/B10 at 25 °C	0 h
Rated life time L90/B10 at 25 °C	0 h
Degree of protection (NEMA)	Other
Rated ambient temperature according to IEC62722-2-1	-20-40 °C
Filament test according to IEC 60695-2-11	None
Dimming 0-10 V	No
Dimming 1-10 V	No
Dimming DALI	No
Dimming DMX	No
Dimming potentiometer (integrated)	No
Dimming GPRS	No
Dimming LineSwitch	No
Dimming manufacturer's proprietary system	No
Dimming mains voltage modulation	No
Dimming phase cut-off	No
Dimming phase cut-on	No
Dimming programmable	No
Dimming RF	No
Dimming Sine Wave Reduction	No
Dimming Touch and Dim	No
Dimming Zigbee	No
Dimming with push-button	No
No dim function	Yes
Light distributor	None
Dimming depending on control gear	No
Dimming DSI	No
Energy efficiency class of the built-in lamp	Other
Suitable for ceiling mounting	Yes
Built-in height/depth	0 mm
Power factor	0.7

Description

This entry-level ceiling fixture with slim housing is mainly applied in humid rooms such as cellars and garages. The so-called batten is made of synthetic materials and has a waterproof IP65 rating. Quick and easy installation thanks to the electrical connection with plug-in clamp connection and the supplied mounting brackets. Suitable for ambient temperatures -20°C to +40°C
