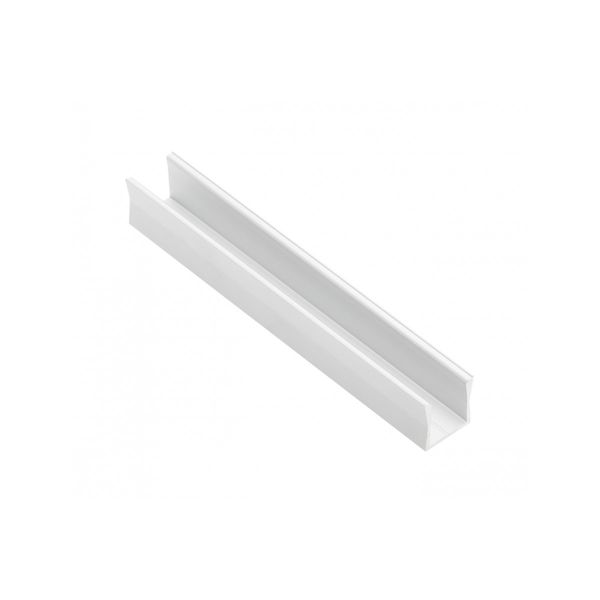

Profile GLAX MINI high for LED strip, surface-mounted, 2 m, white

Order only

Price (excl. VAT):

3,48 €

This price is valid until 31.12.25

EAN: 5902801256851

MPN: PA-GLAXMNKW-AL-10

Package: 1

Box: 20

Pallet: 2400

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Profile GLAX MINI high for LED strip, surface-mounted, 2 m, white
Brand	GTV Lighting
Categories	Accessories/spare parts for light ribbon-/hose/-strip

Packing details

Packing level 1	5902801256851
Packing level 2	5902801256943
Packing level 3	2012801263988
Packing level 4	2012801263995

Downloads

Product data sheet

Description

During operation, the LED strip generates heat that must be dissipated from it. Otherwise, the tape may wear out prematurely. Special aluminium GLAX profiles are used to dissipate heat from the belt. In order to effectively dissipate heat from the tape to the aluminum profile, the tape must adhere to it with its entire surface. Therefore, before pasting the LED strip into the GLAX profile, it is necessary to degrease its center.

Applied profiles are very often chosen by customers due to the very simple assembly. In the case of the micro profile, special mounting brackets are used, having small, curved blades that hold the profile in place. It is recommended that the distance between the grips is not more than 1 meter. The mounting brackets are screwed to the selected surface with screw Г 3 with a conical head. It is very important that the diameter of the screw head does not exceed 6 mm.

The mini, high profile allows you to get an even line of light without visible light points even when using a tape with a not very dense arrangement of LEDs.

The maximum width of the LED strip is 10 mm.

Effectively dissipates the heat generated by the LED strip;
Milk casing PA-OSMLGLAXM-00;
Transparent casing PA-OSTRGLAXM-00;
Casing black PA-OSCLGLAXM-00;
Dedicated end cap PA-ZASGLAXMNKW-10;
Mounting bracket mini PA-SPRGLAXM-00;
The maximum width of the LED strip is 10 mm.
