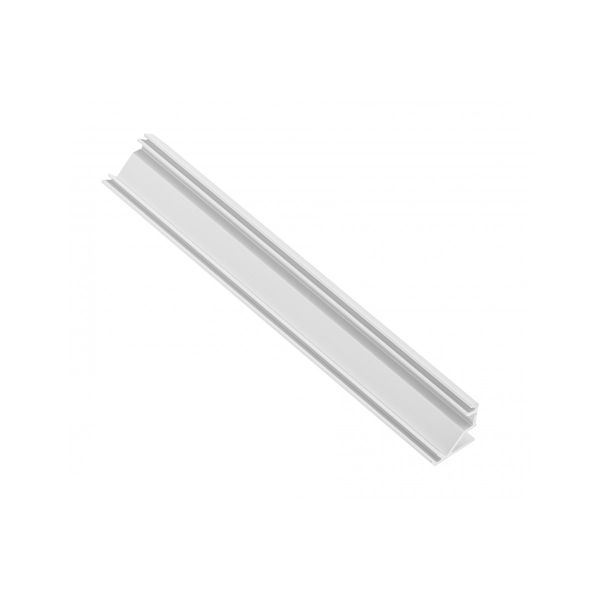

Profile GLAX for LED strip, corner surface-mounted, 2 m, white

Order only

Price (excl. VAT):

3,89 €

This price is valid until 31.12.25

EAN: 5902801259647

MPN: PA-GLAXNKKT-AL-10

Package: 1

Box: 20

Pallet: 5120

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Profile GLAX for LED strip, corner surface-mounted, 2 m, white
Brand	GTV Lighting
Categories	Accessories/spare parts for light ribbon-/hose/-strip

Packing details

Packing level 1	5902801259647
Packing level 2	5902801259661
Packing level 3	2012801264732
Packing level 4	2012801264756

Downloads

Product data sheet

Description

The current trend is to move away from light points in favor of linear lighting, based on LED strips.

During operation, the belt generates heat that must be dissipated from it. Otherwise, the tape may wear out prematurely. Special aluminium GLAX profiles are used to dissipate heat from the belt. In order to effectively dissipate heat from the tape to the aluminum profile, the tape must adhere to it with its entire surface. Therefore, before pasting the LED strip into the GLAX profile, it is necessary to degrease its center.

The angular profile is used in the corners of furniture development, most often under hanging cabinets in the kitchen and under the shelves in the dressing room.

In the case of an angular profile, special mounting brackets are used, having small, curved to the center plates that hold the profile in place. It is recommended that the distance between the grips is not more than 1 meter. The mounting brackets are screwed to the selected surface with screw Г 3 with a conical head. It is very important that the diameter of the screw head does not exceed 6 mm.

Effectively dissipates the heat generated by the LED strip;
Dedicated milk casing PA-OSMLGLAX-00;
Dedicated transparent casing PA-OSTRGLAX-00;
Dedicated black casing: PA-OSCLGLAX-00;
Standard end cap: PA-ZASGLAXNKKT-10;
Mounting bracket: PA-SPRGLAXMIC-00;
The maximum width of the LED strip is 10 mm.
