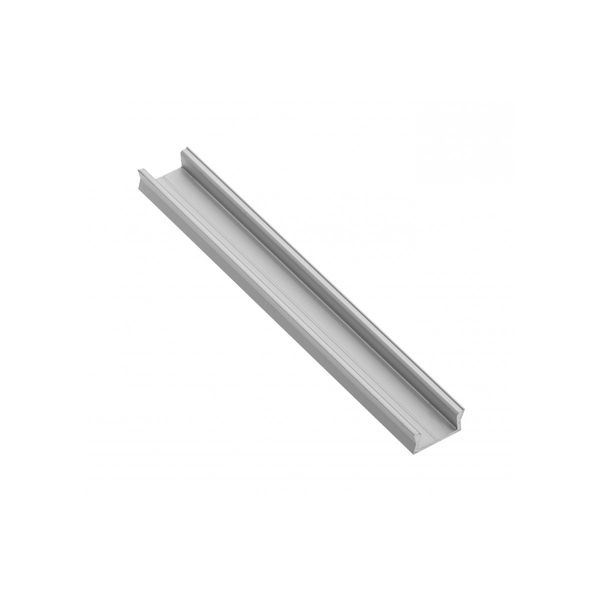

Profile GLAX MINI for LED strip, surface-mounted, 3 m

Order only

Price (excl. VAT):

3,38 €

This price is valid until 31.12.25

EAN: 5902801010781

MPN: PA-GLAXMNK3M-AL

Package: 1

Box: 20

Pallet: 1600

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Profile GLAX MINI for LED strip, surface-mounted, 3 m
Brand	GTV Lighting
Categories	Accessories/spare parts for light ribbon-/hose/-strip

Packing details

Packing level 1	5902801010781
Packing level 2	5902801258916
Packing level 3	2012801315724
Packing level 4	2012801315755

Downloads

Product data sheet

Description

During operation, the LED strip generates heat that must be dissipated from it. Otherwise, the tape may wear out prematurely. Special aluminium GLAX profiles are used to dissipate heat from the belt. In order to effectively dissipate heat from the tape to the aluminum profile, the tape must adhere to it with its entire surface. Therefore, before pasting the LED strip into the GLAX profile, it is necessary to degrease its center.

Applied profiles are very often chosen by customers due to the very simple assembly. In the case of the micro profile, special mounting brackets are used, having small, curved blades that hold the profile in place. It is recommended that the distance between the grips is not more than 1 meter. The mounting brackets are screwed to the selected surface with screw Г 3 with a conical head. It is very important that the diameter of the screw head does not exceed 6 mm.

The mini profile is characterized by a small cross-section of 14x7 mm.

The maximum width of the LED strip is 10 mm.

Effectively dissipates the heat generated by the LED strip;
Milk casing PA-OSMLGLAXM3M-00;
Transparent casing PA-OSTRGLAXM3M-00;
Casing black PA-OSCLGLAXM3M-00;
Dedicated cap PA-ZASGLAXMNK-00;
Mounting bracket mini PA-ZASGLAXMNK-00;
The maximum width of the LED strip is 10 mm.
