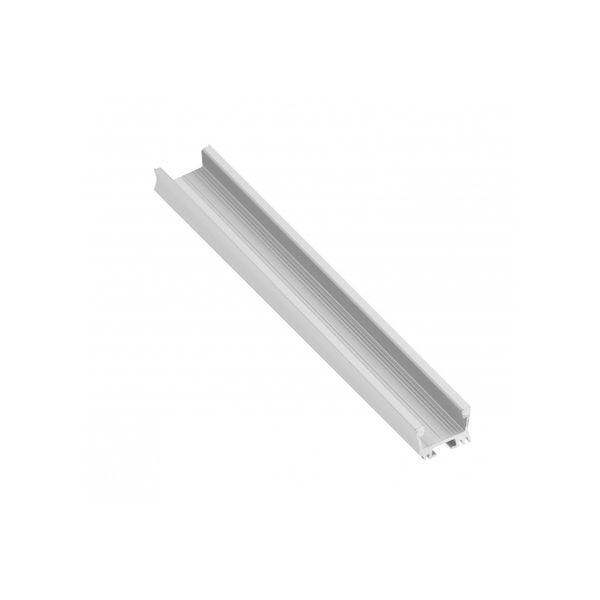

Profile GLAX RADIATOR for LED strip, 2 m

Order only

Price (excl. VAT):

5,37 €

This price is valid until 31.12.25

EAN: 5902801281877

MPN: PA-GLAXRAD-AL

Package: 1

Box: 20

Pallet: 6000

Estimate delivery time at our warehouse (approx.): 2-4 weeks

Technical Information

Item condition	New
Manufacture name	Profile GLAX RADIATOR for LED strip, 2 m
Brand	GTV Lighting
Categories	Accessories/spare parts for light ribbon-/hose/-strip

Packing details

Packing level 1	5902801281877
Packing level 2	5902801281914
Packing level 3	2012801293077
Packing level 4	2012801293060

Downloads

Product data sheet

Description

During operation, the LED strip generates heat that must be dissipated from it. Otherwise, the tape may wear out prematurely. Special aluminium GLAX profiles are used to dissipate heat from the belt. In order to effectively dissipate heat from the tape to the aluminum profile, the tape must adhere to it with its entire surface. Therefore, before pasting the LED strip into the GLAX profile, it is necessary to degrease its center.

The profile with heatsink is able to effectively absorb the heat generated by very high power tapes, consuming up to 30 W / 1m.

Using the lens cover, we have the ability to narrow the angle of light scattering to 60 В°.

Applied profiles are very often chosen by customers due to the very simple assembly. In the case of the micro profile, special mounting brackets are used, having small, curved blades that hold the profile in place. It is recommended that the distance between the grips is not more than 1 meter. The mounting brackets are screwed to the selected surface with screw Г 3 with a conical head. It is very important that the diameter of the screw head does not exceed 6 mm.

Specially designed design allows you to hang the profile on cables. Dedicated links are 150 cm long.

Effectively dissipates the heat generated by the LED strip;
Dedicated milk casing PA-OSMLGLAX-00;
Dedicated transparent casing PA-OSTRGLAX-00;
Dedicated lens cover: PA-OSMLGLAXSO-00;
Dedicated cap PA-ZASGLAXRAD-00;
Mounting bracket PA-SPRGLAXM-00;
Suspension rope (1) PA-ZAWGLAXDR-00;
The maximum width of the LED strip is 12 mm.
