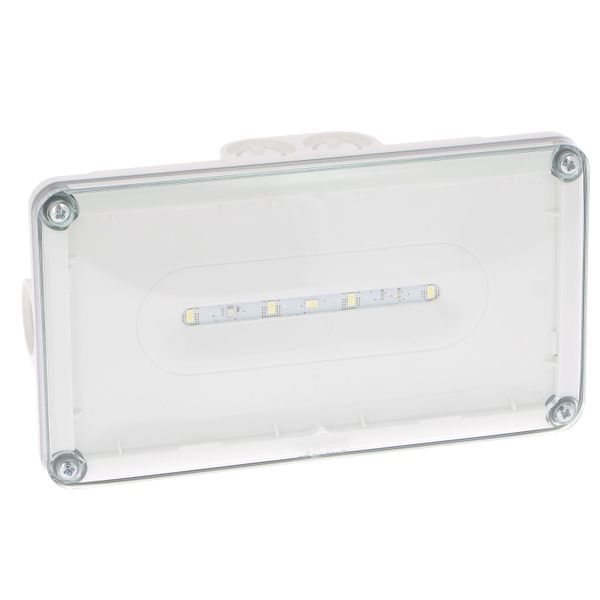

Emergency LED Luminaire LSC Surface Mount 24V 45lm IP66 IK10
Order only
EAN: 3414971361423
MPN: 062816
Package: 1
Box: 10
Pallet: 100
Price (excl. VAT)
139,99 €
per unit
MOQ: 1
EDT to our warehouse: 2-4 weeks
This price is valid until next price list or while stock lasts
Technical Information
| Item condition | New |
| Manufacture name | Emergency LED Luminaire LSC Surface Mount 24V 45lm IP66 IK10 |
| Brand | Legrand |
| Categories |
Emergency luminaires
|
| Country of origin* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 6120 00 |
| ETIM | EC001957 |
| Width | 125 mm |
| Length | 225 mm |
| Height/depth | 62 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 20.4-28 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 5600-5700 K |
| Max. system power | 1.5 W |
| Rated luminous flux according to IEC 62722-2-1 | 45 lm |
Packing details
| Packing level 1 | 3414971361423 |
| Packing level 2 | 3414971361430 |
| Packing level 3 | 3414971361423 |
Other Technical data
| Mounting method | Surface mounting/recessed mounting |
| Protection class | II |
| Function | Escape route lighting |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Screw connection |
| Colour housing | White |
| Voltage type | DC |
| Power supply system | Central (central battery) |
| Type of control gear | LED operating device current-controlled |
| Suitable for labelling type | Other |
| Type of indicator | Single-sided |
| Number of poles | 4 |
| Housing material | Plastic |
| Wiring system | Continuous circuit/emergency circuit |
| Number of lighting heads | 1 |
| Material cover | Plastic, transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| With remote switch connection | Yes |
| Monitoring equipment | None |
| Recognition distance | 15 m |
| With pictogram | Yes |
| Luminous flux in standby mode | 3 lm |
| LED nominal current at constant current | 62 mA |
| Light distributor | Diffuser lens/optic/panel |
| Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
