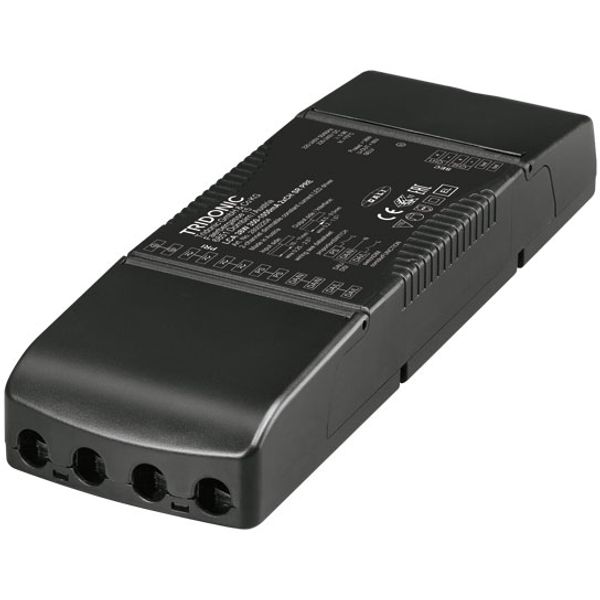

LED drivers
Order only
Price (excl. VAT):
57,02 €
EAN: 9006210644127
MPN: 28002202
Box: 1
Estimate delivery time to our warehouse: 2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | LED drivers |
| Brand | Tridonic |
| Categories |
LED drivers
|
| ETIM | EC002710 |
| Width | 70 mm |
| Height | 31 mm |
| Housing | Plastic housing |
| Length | 215 mm |
| Output voltage | 20-50 V |
| Output power | 7-38 W |
| Degree of protection (IP) | IP20 |
| Output current | 350-1050 mA |
| Suitable for constant current | Yes |
| Suitable for constant voltage | No |
| No dim function | No |
Packing details
| Packing level 1 | 9006210644127 |
Other Technical data
| Protection class | I |
| Model | Dynamic |
| Diameter | 76.56 mm |
| Suitable for outdoor use | No |
| Suitable for DC-voltage (primary side) | Yes |
| Constant light output (CLO) | Yes |
| IFTTT support available | No |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | Yes |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | Yes |
| Dimming DSI | Yes |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible with Casambi | No |
Description
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253) ¦ Independent dimmable constant current 2-channel LED driver with DALI-2 DT8 with strain-relief ¦ Dimming range 1 to 100 % ¦ Suitable for luminaires of protection class I and protection class II (see data sheet chapter 3.4 for details) ¦ Output current adjustable between 350 – 1,050 mA via I-SELECT 2 plugs or DALI ¦ Max. output power 38 W ¦ Up to 87 % efficiency ¦ Power input on stand-by < 0.25 W ¦ Nominal lifetime up to 100,000 h ¦ 5 years guarantee (conditions at www.tridonic.com) ¦ Casing: polycarbonate, black ¦ Type of protection IP20 ¦ Strain relief with loop through function ¦ one4all (DALI-2 DT8, DSI, switchDIM, corridorFUNCTION V2) ¦ colourSWITCH ¦ Terminal blocks: 45° / 0° push terminals ¦ Adjustable output current in 1-mA-steps (DALI, I-SELECT 2) ¦ Constant light output function (CLO) ¦ colourSWITCH with predefined colours ¦ switchDIM and colourSWITCH with memory function ¦ Power-up fading and fade2zero ¦ Configurable via DALI ¦ Protective features (overtemperature, short-circuit, overload, no-load, reduced surge amplification) ¦ Suitable for emergency escape lighting systems acc. to EN 50172 ¦ Application-oriented operating window for maximum compatibility ¦ Best energy savings due to low stand-by losses ¦ For spot light and downlight in retail and hospitality applications ¦ Tunable white application
