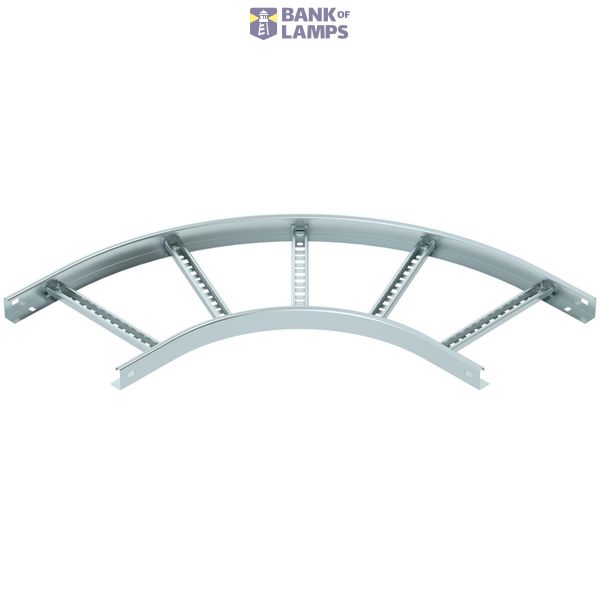

LB 90 430 R3 FS 90° bend for cable ladder 45x300

Name: LB 90 430 R3 FS 90° bend for cable ladder 45x300
Brand: OBO Bettermann
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LB 90 430 R3 FS 90° bend for cable ladder 45x300
Brand	OBO Bettermann
Country of origin*	HU
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	7308 9059 00
ETIM	EC001535
Type of rung	Perforated profile
Side wall perforation	No
Angle	90°
Change of direction	Horizontal
Type of side joist	Flat profile

Packing level 1	4012196494262
Packing level 2	4012197133757

Model	Without connector
Surface protection	Continuously galvanized
Hinging	No
Material	Steel

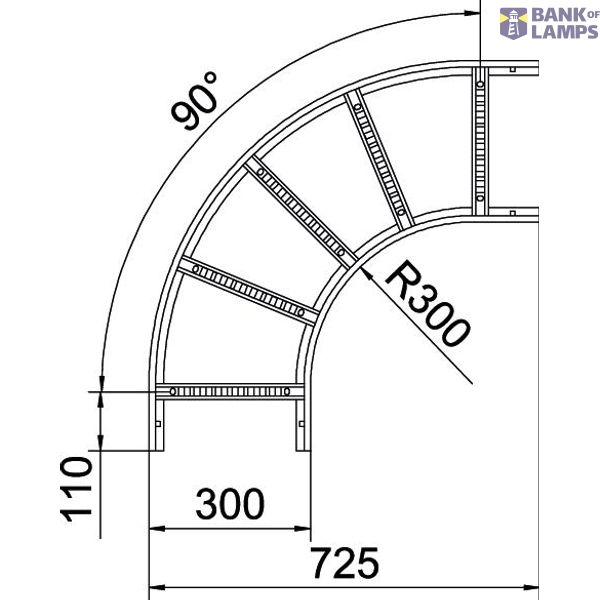

Inner radius	300 mm
Cable ladder width	300 mm
Cable ladder height	45 mm
Wide span model	No
Suitable for circuit integrity	No

Horizontāls 90° līkums ar piemetinātu spraisli visu veidu kabeļu trepēm, kuru malas augstums ir 45 mm.
