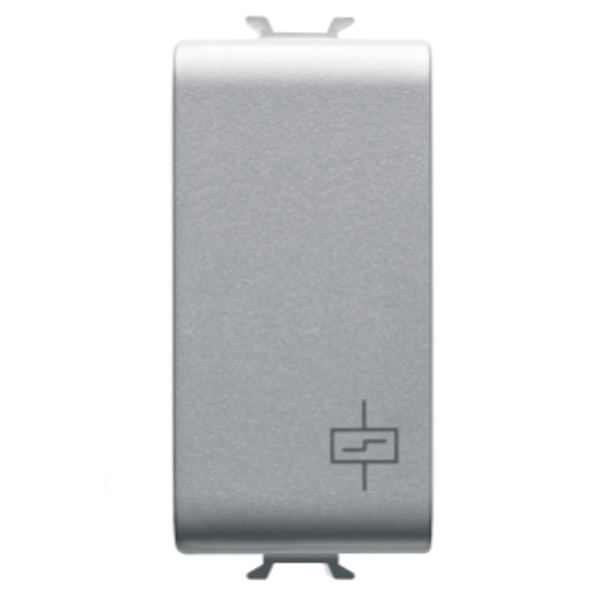

LATCHING RELAY 230V ac 50/60Hz - 1P 10AX 250V ac - 1 MODULE - TITANIUM - CHORUSMART
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
19,54 €
EAN: 8011564268791
MPN: GW14721
Package: 1
Box: 12
Pallet: 2340
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LATCHING RELAY 230V ac 50/60Hz - 1P 10AX 250V ac - 1 MODULE - TITANIUM - CHORUSMART |
| Brand | GEWISS |
| Categories |
Relays
|
| Harmonized System Code | 8536 4900 00 |
| Nominal current | 0 A |
| Type of switch contact | Single contact |
| Type of electric connection | Screw connection |
| Rated control supply voltage at AC 50 Hz | 250 V |
| Degree of protection (IP) | IP41 |
| With LED indication | No |
| Voltage type for actuating | AC |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
Packing details
| Packing level 1 | 8011564268791 |
| Packing level 2 | 8011564268791 |
| Packing level 3 | 8011564268791 |
Other Technical data
| Width | 22 mm |
| Height | 44 mm |
| Depth | 20 mm |
| With detachable clamps | No |
| Drive, polarization | Polarized |
| Drive, switching attitude | Bistable |
| With forced-guided contacts | No |
| Complete with socket | No |
| Rated control supply voltage at AC 60 Hz | 250 V |
| Number of contacts as change-over contact | 0 |
Downloads
Description
CHORUSMART - Domestic range Glossy titanium modular devices - The ChoruSmart modular devices make it possible to create infinite combination between devices and plates, thanks to a complete range that is able to satisfy all design, functional and installation requirements.Colors and finishes: glossy painted titanium, innovative and trendy.Unlimited functions in reduced spaces: the ChoruSmart range consists of rocker button keys with ½, 1, 2 and 3 modules, to optimise space as needed, and axial keys in EVO or SMART version, to satisfy even the most modern needs.Front coupling: the front coupling makes the component assembly and release operations simple and quick, enabling these to be completed without removing the support, unique for all the plates and fruits.
