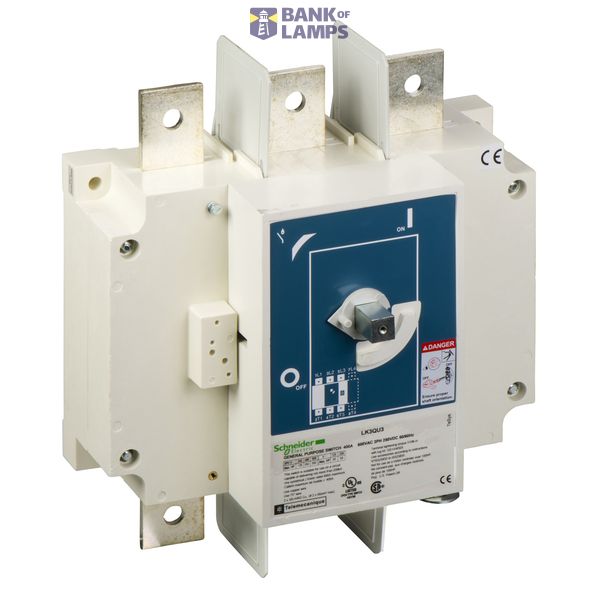

LASTSCH. 3P. 400A

Name: LASTSCH. 3P. 400A
Brand: Schneider Electric
Availability: PreOrder

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	LASTSCH. 3P. 400A
Brand	Schneider Electric
Country of origin*	FR
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 2010 00
ETIM	EC000216
Rated permanent current Iu	400 A
Number of poles	3
Rated operating voltage	0-600 V
Degree of protection (IP), front side	IP20
Version as main switch	No
Version as safety switch	No
Version as maintenance-/service switch	No
Rated short-time withstand current lcw	0 kA

Packing level 1

3389110179958

Rated operation power at AC-3, 400 V	0 kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Conditioned rated short-circuit current Iq	0 kA
Number of auxiliary contacts as change-over contact	0
Number of switches	0
Interlockable	No
Motor drive integrated	No
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	No
Rated operation power at AC-23, 400 V	220 kW
Suitable for floor mounting	No
Suitable for front mounting 4-hole	No
Suitable for front mounting centre	No
Suitable for distribution board installation	Yes
Suitable for intermediate mounting	No
Max. rated operation voltage Ue AC	750 V
Motor drive optional	No
Voltage release optional	No
Device construction	Built-in device plug-in technique
Rated permanent current at AC-21, 400 V	400 A
Switching power at 400 V	0 kW
Version as reversing switch	No
Rated permanent current at AC-23, 400 V	0 A
