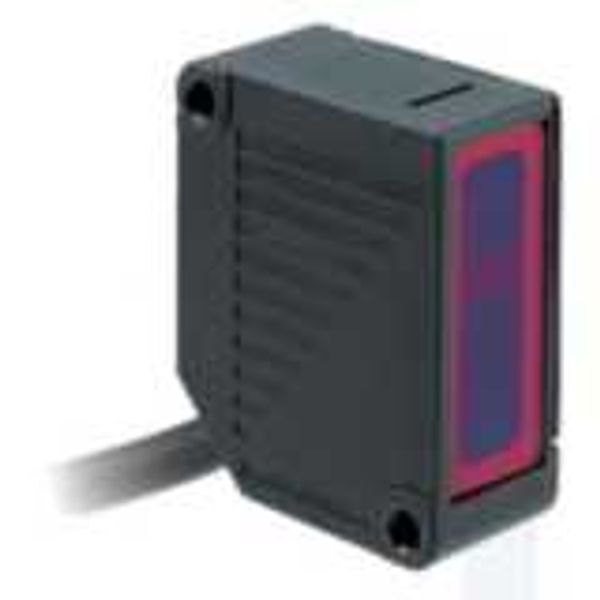

Laser displacement sensor head, 100+/-40mm, spot focus (requires ampli ZX 0004F

Name: Laser displacement sensor head, 100+/-40mm, spot focus (requires ampli ZX 0004F
Brand: Omron
Price: 729.890 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

729,89 €

This price is valid until 28.02.26

EAN: 4536854772306

MPN: ZX-LD100

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Laser displacement sensor head, 100+/-40mm, spot focus (requires ampli ZX 0004F
Brand	Omron
Categories	Distance Sensors
Country of origin*	NL
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	9031 9000 00
Voltage type	DC
Scanning principle	Reflection system
Type of analogy output	Other
Type of electric connection	Cable with connector
Type of switching output	Other
Type of switch function	Other
Operation agent-safety class	Safety class 3
Construction type housing	Cuboid
Type of light	Laser diode, red light
Light dot	0.008 mm²
Relative linearity deflection	0.2 %
Supply voltage	12-24 V
Degree of protection (IP)	IP50

Packing details

Packing level 1

4536854772306, 4536854772306

Other Technical data

Max. output current	50 mA
Housing material	Plastic
Ambient temperature	0-50 °C
With time function	No
Switching frequency	6600 Hz
Signalling interval	6600 Hz
Setting procedure	Teach-In
Explosion safety category for gas	None
Explosion safety category for dust	None
Geometrical resolution	0.016 mm
Standard for interfaces	Analogue
Laser protection class	Class 2
Measuring principle for optical distance measurement	Triangulation
Relative repeat accuracy	0 %
Pre failure notice	No
Material of optical surface	Glass
Material of cable sheath	Polyvinyl chloride (PVC)
AWG-number	28
Width sensor	17 mm
Height of sensor	39 mm
Length of sensor	33 mm
Sensing mode	Light-/dark switching
Measuring range length	60-140 mm
Degree of protection (NEMA)	Other
