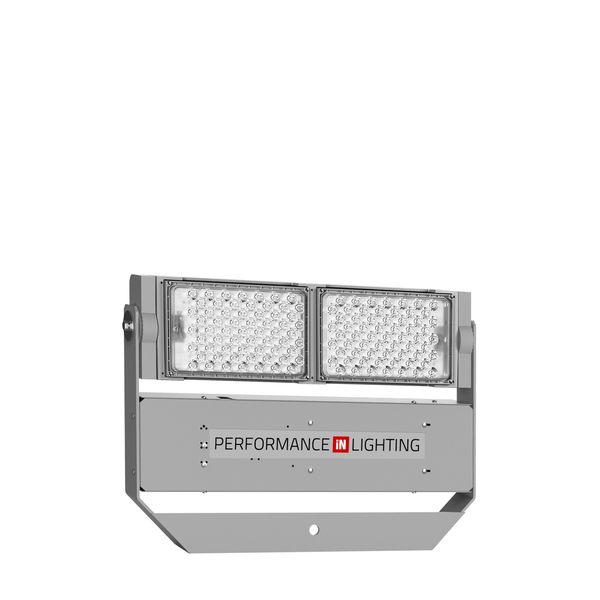

LASER+10 EXT 527 ELL10x25 957 DMX
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 8018367714081
MPN: 3113362
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | LASER+10 EXT 527 ELL10x25 957 DMX |
| Brand | Performance in Lighting |
| Categories |
Wall mounting lamps
|
| Country of origin | IT |
| Harmonized System Code | 9405 4210 00 |

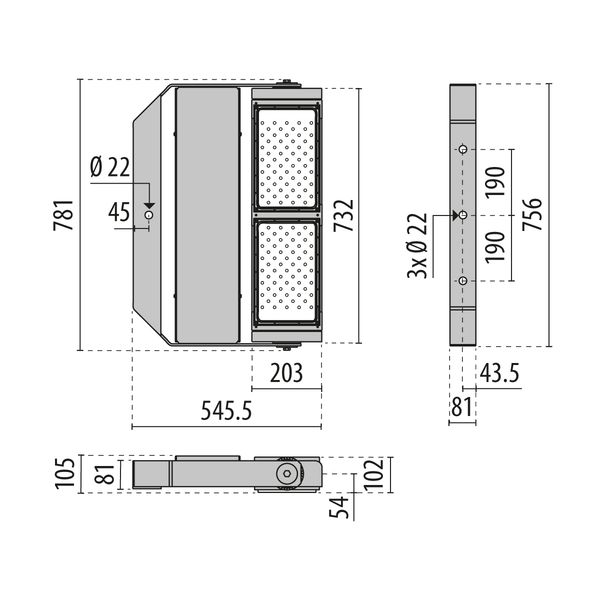

| Width | 781 mm |
| Colour rendering index CRI | 90-100 |
| Length | 545.5 mm |
| Height/depth | 105 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220 V |
| Beam angle | Narrow beam 11 - 20° |
| Colour temperature | 5700 K |
| Max. system power | 542 W |
Packing details
| Packing level 1 | 8018367714081, 8018367714081 |
Other Technical data
| Protection class | I |
| Reflector | None |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Screwed terminal |
| Colour housing | Grey |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 542 W |
| Type of control gear | LED operating device current-controlled |
| Suitable for wall mounting | Yes |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Number of poles | 3 |
| Housing material | Aluminium |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Connectable conductor cross section | 1.5 mm² |
| Surface brushed | No |
| Nominal current | 1400 |
| Colour of light | White |
| Adjustability | Rotatable |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Photobiological safety according to EN 62471 | RG1 |
| Rated ambient temperature according to IEC62722-2-1 | -40 °C |
| Filament test according to IEC 60695-2-11 | 960 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | Yes |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Diffuser lens/optic/panel |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 0 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 3 |
| Max. number of luminaires per miniature circuit breaker B16 | 2 |
| Dimming DALI-2 | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | No |
| Power factor | 0.9 |
Downloads
Description
LED schijnwerper voor binnen en buiten bestaande uit: Behuizing van spuitgietaluminium gelakt met polyester poederlak na chemische conversiebehandeling van het oppervlak ISO 9227/12944 - ISO 9223 (C5). Afscherming met geïntegreerde optische groep van transparant Uv- en warmte bestendig technopolymeer. Optische groep bestaande uit lenzen van technopolymeer met zeer hoge licht-doorgave. Pakking van slijtvast siliconen, met zeer hoge elastische terugveer-capaciteit. Zeer efficiënt koellichaam van geextrudeerd aluminium extern geoxideerd. Lichtbron bestaande uit een combinatie van meerdere LED modules. Neem contact op met de afdeling verkoop voor andere kleurtemperaturen en CRI. Schroeven van roestvrij staal. Beugel van staal gelakt met polyesterpoeder na voorafgaande thermische verzinking. Het vermogen van de LASER+ is inclusief het vermogen van de driver. Compleet met goniometer met schaalverdeling voor de afstelling van de richting. De versies LASER+ 10 zijn compleet met voedingsgroep aan de binnenzijde van een bedradingsvak van gelakt plaatstaal. De elektrische aansluiting geschiedt via een speciale polyamide doos met scheurvaste kabelwartel M25x1.5 voor kabels Ø 9 - Ø 16 mm. Compleet met extra voorziening voor bescherming tegen piekspanningen van het netwerk tot aan 10 kV (CM/DM).
