LANOS L 4000-927-65 OP DI LDE WH - Decor. round wall and ceiling luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
867,12 €
EAN: 9010299699473
MPN: 42188183
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | LANOS L 4000-927-65 OP DI LDE WH - Decor. round wall and ceiling luminaire |
| Brand | Zumtobel |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Surface mounting lamps |
| Country of origin | GB |
| Harmonized System Code | 9405 1190 00 |
| Colour housing | White |
| Colour rendering index CRI | 90-100 |
| Height/depth | 69 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK08 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP54 |
| Beam angle | Extreme wide beam >80° |
| Colour temperature | 4000 K |
| Max. system power | 32.1 W |
| Rated luminous flux according to IEC 62722-2-1 | 3600 lm |
| Luminaire efficacy | 113 lm/W |
Packing details
| Packing level 1 | 9010299699473, 9010299699473 |
Other Technical data
| Protection class | II |
| Outer diameter | 496 mm |
| Lamp holder | Other |
| Conductor cross section | 2.5 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC |
| With movement sensor | No |
| Type of grid | None |
| Type of control gear | LED operating device current-controlled |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Plastic |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, transparent |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for number of lamps | 1 |
| Suitable for built-in mounting | No |
| With control gear | Yes |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | Yes |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Rated life time L70/B50 at 25 °C | 74000 h |
| Colour consistency (McAdam ellipse) | SDCM2 |
| Total harmonic distortion | 5 |
| Photobiological safety according to EN 62471 | RG1 |
| Rated ambient temperature according to IEC62722-2-1 | -15-25 °C |
| Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | Yes |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | Yes |
| No dim function | No |
| Dimming DSI | Yes |
| Unified Glare Ratio (UGR) | 21 |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 26 |
| Max. number of luminaires per miniature circuit breaker B16 | 16 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Flickering value Pst LM | 1 |
| Colour temperature adjustable | Continuously variable |
| Luminous flux adjustable | Continuously variable |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Suitable for ceiling mounting | Yes |
| Power factor | 0.96 |
Downloads
Description

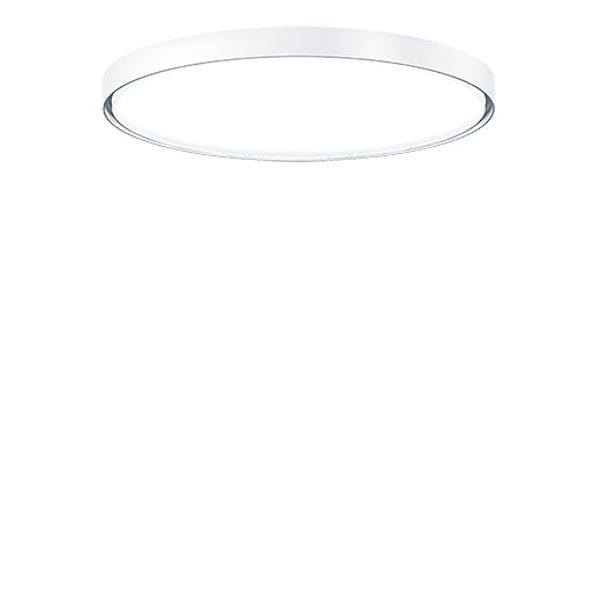

Decor. round wall and ceiling luminaire LANOS OPAL; Luminaire input power: 32.1 W; LED service life lasts 50000 h before luminous flux is reduced to 80% of the initial value. Luminaire efficacy: 112 lm/W; Total luminous flux: 3600 lm; Colour rendering Ra > 90, colour temperature (tunable) 2700-6500 K; DALI controllable luminaire; with LED converter; Chromaticity tolerance (initial MacAdam): 2; premium luminaire housing made of polycarbonate in colour white; (similar to RAL 9016); opal optic; Low indirect component for wall / ceiling illumination, emphasising the floating appearance; ; Impact strength: IK08 and protection rating IP54.
Dimensions: Ø496 x 69 mm; weight: 2.91 kg
