L 92 B 63 H 57 colour: white 12 - 22,50 V

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

120,14 €

This price is valid until 24.12.25

EAN: 4051859949466

MPN: 982955.002

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	L 92 B 63 H 57 colour: white 12 - 22,50 V
Brand	RZB
Categories	Controllers for luminaires
Country of origin	DE
Harmonized System Code	8536 5003 00
Width	63 mm
Model	Static
Height	57 mm
Housing	Plastic housing
Length	92 mm
Surface-mounted	Yes
Built-in	No
Suitable for outdoor use	Yes
Degree of protection (IP)	IP65
IFTTT support available	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
DIN-rail mounting	No

Packing details

Packing level 1

4051859949466, 4051859949466

Downloads

Mounting instruction

Description

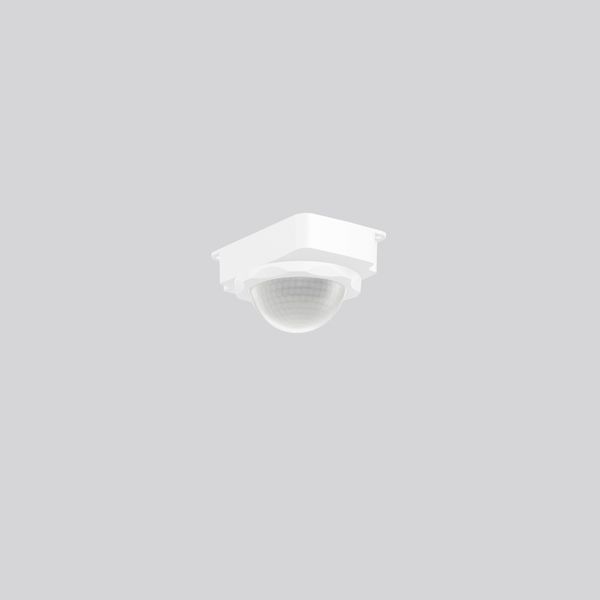

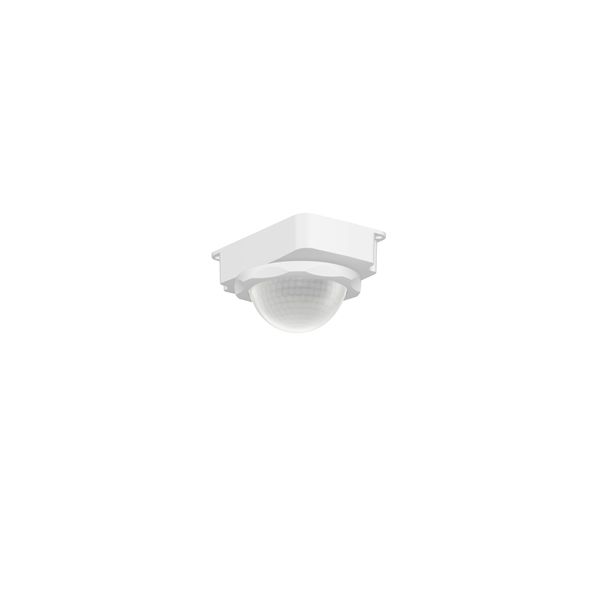

Far-reaching 360° passive infrared light and movement sensor (PIR) with radial presence and movement detection. Connected to the DALI bus via the Zhaga socket (book 18 Ed.2). The DALI-2 multisensor supplies the sensor data to the controller via the wired DALI network. Power supply via the DALI bus. Constant light control possible. Detection area and sensitivity adjustable via light management system. Housing of non-flammable, halogen-free plastic (polycarbonate). For installation heights of 2.8 - 14 m. The maximum diameter of the detection range is 36 m so an area of up to 1000 m² can be monitored. The integrated light sensor has a working range of 4 - 1000 lx. Application example: presence detection and constant light control for work and office areas. Only for use with sensor module with Zhaga socket without integrated power supply. Module must be ordered separately.
