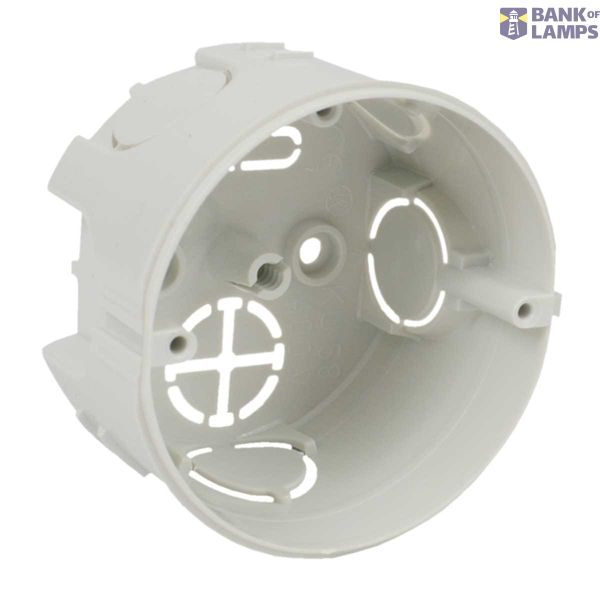

KU 68-1901 - Box Universal, configuration KA, colour grey, package - 100 pcs
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | KU 68-1901 - Box Universal, configuration KA, colour grey, package - 100 pcs |
| Brand | KOPOS |
| Country of origin* | CZ |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3030 00 |
| ETIM | EC002601 |
| Mounting method | Facing brickwork |
| Model | Single |
| Shape | Round |
| Equipped with | None |
| Connectable | No |
| Provided with revolving ring | No |
Packing details
| Packing level 1 | 8595057600096 |
Other Technical data
| Colour | Grey |
| Width | 0 mm |
| Halogen free | No |

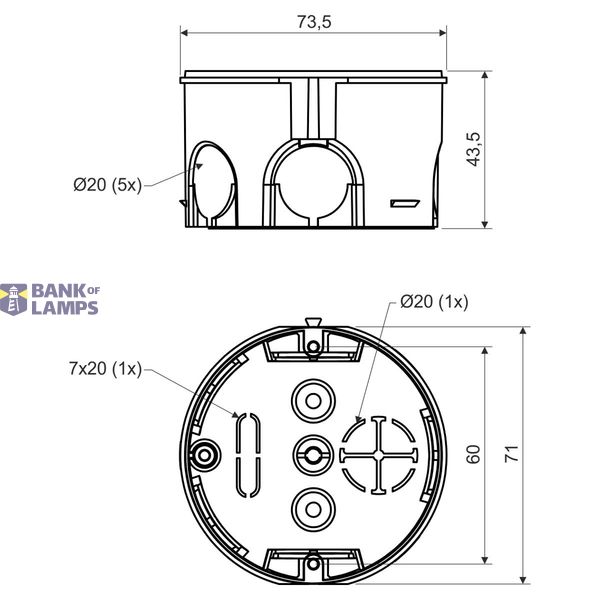

| Diameter | 73 mm |
| Construction type | Device connection box (round/square) |
| Inner depth | 41 mm |
| Length | 0 mm |
| Sealable | No |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 7 |
| Mounting switching equipment | Screwing |
| For number of electric fittings | 1 |
| Luminaire hook mounting | No |
| Max. conductor cross section | 4 mm² |
| With screening | No |
| With nail lugs | No |
| With screws | Yes |
| Air tight | No |
| Depth | 43.5 mm |
| Suitable for cable diameter | 7-20 mm |
| For tube diameter | 20 mm |
| Inlet from the rear | Yes |
| Pipe locking | No |
| Clamp position fixed | No |
| Number of poles of the clamp | 0 |
| Housing feed-through by seal membrane | No |
| Housing feed-through by nozzle | No |
| Housing feed-through by step membrane | No |
| Pipe locking optional | No |
| Number of included spouts | 0 |
| Housing feed-through by break-out opening | Yes |
| Transparent cover | No |
Downloads
Description
KU 68-1901 - Box Universal, configuration KA, colour grey, package - 100 pcs - possibility of connection in a continuous row with a pitch of 71 mm, it is recommended to connect up to 3 boxes in one row, boxes can be connected with boxes KU 68-1901, KP 68/2 and KPR 68, possibility of insertion of terminal plate, possibility of insertion of screwless clamps
