KS connector St/tZn-ZDC f. Rd 7-10mm one-iece

Order only

Price (excl. VAT):

3,08 €

This price is valid until 24.12.25

EAN: 4013364067035

MPN: 301000

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	KS connector St/tZn-ZDC f. Rd 7-10mm one-iece
Brand	Dehn
Categories	Earthing Products
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8538 9099 00
Surface protection	Untreated
Type of fastening screws	Clamp screw
Material	Zinc die-cast
Lightning current load-bearing capacity (10/350 µs)	100 kA
Diameter round conductor 1	7-10 mm

Packing details

Packing level 1

4013364067035, 4013364067035

Other Technical data

Type of connector

Connector

Downloads

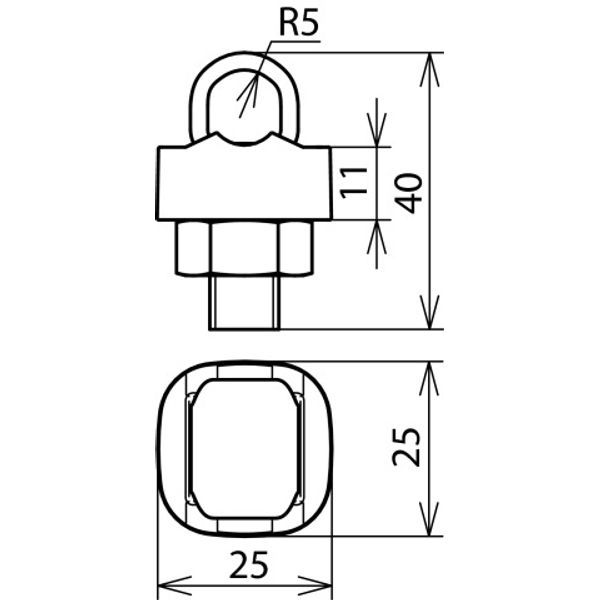

Product data sheet Dimensioned drawing Deep link REACH

Description

Clamping screw connector according to DIN EN 62561-1, for lightning current carrying connection of round conductors, e.g. to flat profiles, downpipe clamps or other parts of the lightning protection system, one-piece, St/tZn, with screw and nut M10.
