Technical Information
Item condition |
New |
Manufacture name |

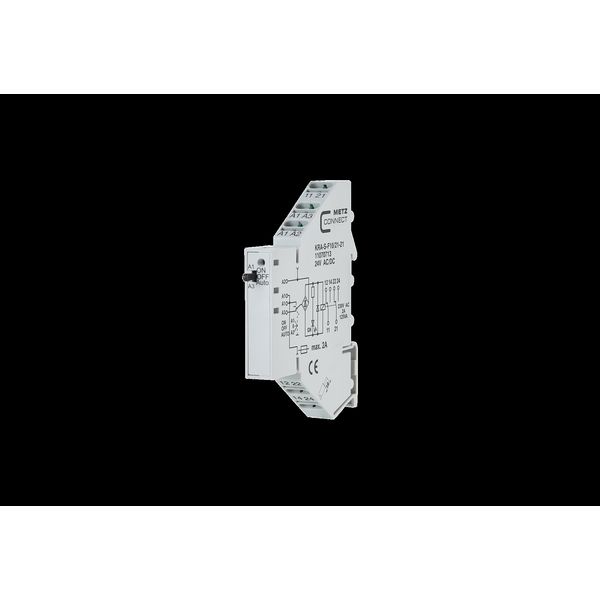

KRA-S-F10/21-21, 2 changeover contacts, 24 V AC/DC |
Brand |
METZ CONNECT
|
Categories |
Relay DC 24v
|
Country of origin |
DE |
Harmonized System Code |
8536 4900 00
|
Nominal current |
2 A |
Type of switch contact |
Single contact |
Type of electric connection |
Spring clamp connection |
Rated control supply voltage at AC 50 Hz |
24 V |
Degree of protection (IP) |
IP20 |
With LED indication |
Yes |
Voltage type for actuating |
AC/DC |
Number of contacts as normally closed contact |
0 |
Number of contacts as normally open contact |
0 |
Packing details
Packing level 1 |
4250184123101 |
Packing level 2 |
4250184123101 |
Other Technical data
Width |
11.2 mm |
Height |
88 mm |
Depth |
60 mm |
With detachable clamps |
No |
Drive, polarization |
Polarized |
Drive, switching attitude |
Mono stable |
With forced-guided contacts |
No |
Complete with socket |
Yes |
Rated control supply voltage at DC |
24 V |
Material of contact surface |
Other |
Material contact |
Other |
Number of contacts as change-over contact |
2 |
Material of contact insert |
Other |
Description
Coupling devices are used to electrical isolation between logic and load., Connection with spring-clamp terminal, Additional terminals for jumper, Test contacts for each terminal, safe separation, with manual control level
