KRA-2500 MEDIDOR AISLAMIENTO
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
524,85 €
EAN: 8426487599141
MPN: 0875847
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | KRA-2500 MEDIDOR AISLAMIENTO |
| Brand | KOBAN |
| Categories |
Measuring instruments
|
| Country of origin | CN |
| Harmonized System Code | 9030 3320 90 |
| Current supply | Battery |
| Indication | Digital |
| Isolation resistance measuring range | 1-25 MOhm |
| Nominal test voltage 100 V | Yes |
| Nominal test voltage 1000 V | Yes |
| Nominal test voltage 250 V | Yes |
| Nominal test voltage 2500 V | Yes |
| Nominal test voltage 500 V | Yes |
| Nominal test voltage 5000 V | No |
| Nominal test voltage 10 kV | No |
| Nominal test voltage 15 kV | No |
Packing details
| Packing level 1 | 8426487599141 |
| Packing level 2 | 8426487599141 |
Other Technical data
| Measured value memory | Yes |
| Low resistance measurement | No |
| Interface | Yes |
| Data hold | Yes |
| Background lighting LC-indication | Yes |
| Over voltage protector testing | No |
| Analogue bar graph display | No |
| Nominal test voltage adjustable | Yes |
| Voltage measurement | Yes |
| Nominal test voltage adjustable with ramp function | No |
| External voltage detection at OFF-state | Yes |
Downloads
Description

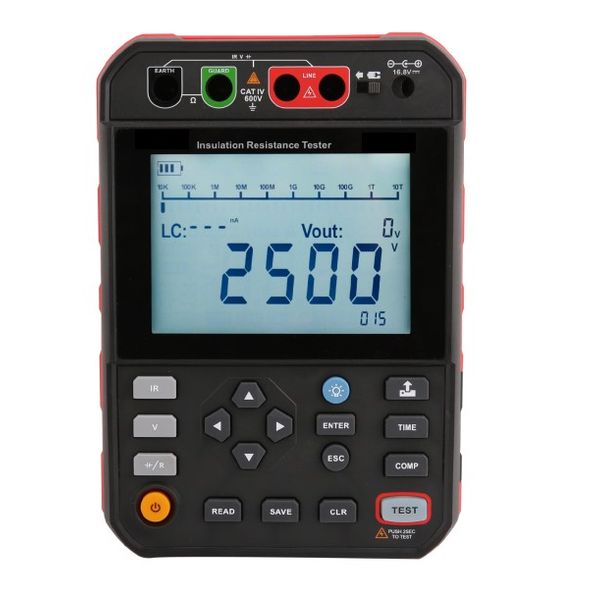

El KRA-2500 es un medidor de resistencia de aislamiento variable con rango 0,25kV a 2,5kV, con tensiones seleccionables de ensayo entre 250V y 2500V, incluyendo 1500V. Este medidor de aislamiento dispone de categoría de empleo CATI600V, con medición de pruebas DAR (Ratio de Absorción Dieléctrica) y PI (Índice de Polarización). Permite el registro de datos hasta 999 sets y la exportación de los mismos vía cable USB para el análisis a través de software en PC.
