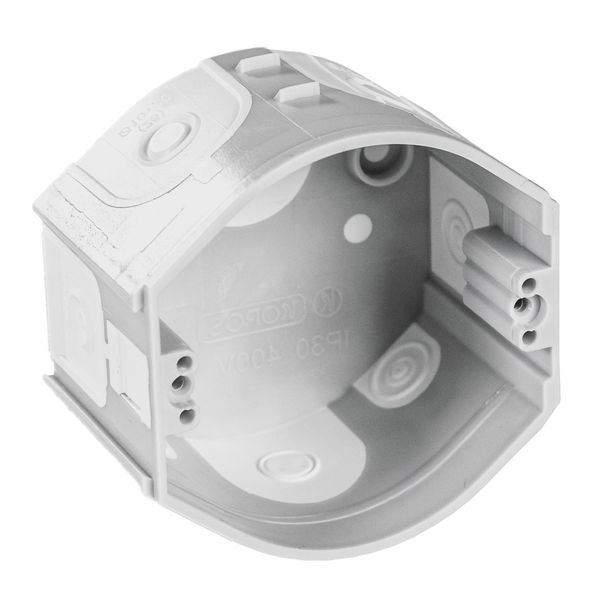

KP 68/D - Instrument box, configuration KA, light grey colour, package - 100 pcs
In stock: Yes
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
0,395 €
per pcs
EAN: 8595568932327
MPN: KP 68/D_KA
Package: 1
Box: 100
Pallet: 3600
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | KP 68/D - Instrument box, configuration KA, light grey colour, package - 100 pcs |
| Brand | KOPOS |
| Categories |
Flush Mounted Junction Boxes
|
| Country of origin | CZ |
| Harmonized System Code | 3925 9020 00 |
| Mounting method | Facing brickwork |
| Model | Single |
| Shape | Round |
| Equipped with | None |
| Connectable | No |
| Degree of protection (IP) | IP30 |
| Provided with revolving ring | No |
Packing details
| Packing level 1 | 8595568932327 |
| Packing level 2 | 8595568932327 |
| Packing level 3 | 8595568932327 |
Other Technical data
| Colour | Grey |
| Width | 0 mm |
| Halogen free | No |
| Diameter | 73 mm |
| Construction type | Device connection box (round/square) |
| Inner depth | 43 mm |
| Length | 0 mm |
| Sealable | No |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 8 |
| Mounting switching equipment | Screwing |
| For number of electric fittings | 1 |
| Luminaire hook mounting | No |
| Max. conductor cross section | 4 mm² |
| With screening | No |
| With nail lugs | No |
| With screws | Yes |
| Air tight | Yes |
| Depth | 45 mm |
| Suitable for cable diameter | 6-25 mm |
| For tube diameter | 20/25 mm |
| Inlet from the rear | Yes |
| Pipe locking | No |
| Clamp position fixed | No |
| Number of poles of the clamp | 0 |
| Housing feed-through by seal membrane | Yes |
| Housing feed-through by nozzle | No |
| Housing feed-through by step membrane | No |
| Pipe locking optional | No |
| Number of included spouts | 0 |
| Housing feed-through by break-out opening | No |
| Transparent cover | No |
Downloads
Description
KP 68/D - Box instrumental, configuration KA, colour light grey, package - 100 pcs - possibility of connection in a continuous row with a pitch of 71 mm, boxes can be connected with boxes KPR 68/D, inlet openings made of elastic material, airtightness provided even with inserted cable or pipe, suitable for low energy or passive houses, instrument screws are equipped with a double-threaded thread for easier installation
