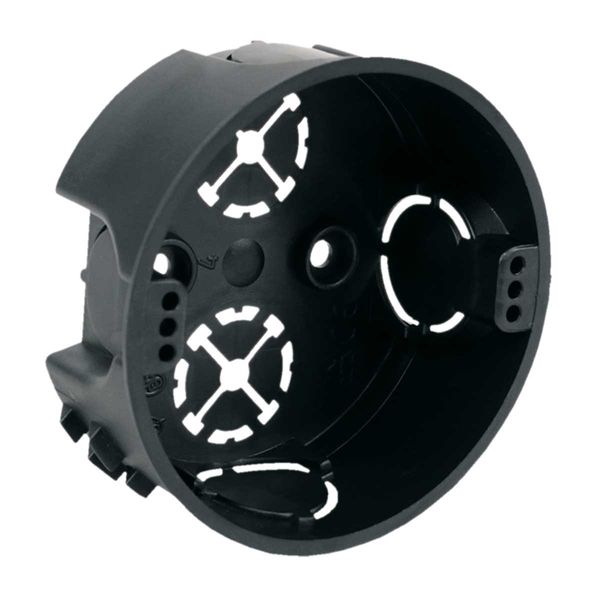

KP 68/2HF - Instrument box, configuration FA, black colour, package - 10/150 pcs
Order only
Price (excl. VAT):
1,01 €
per pcs
EAN: 8595057634923
MPN: KP 68/2HF_FA
Package: 1
Box: 120
Pallet: 4320
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | KP 68/2HF - Instrument box, configuration FA, black colour, package - 10/150 pcs |
| Brand | KOPOS |
| Categories |
Flush Mounted Junction Boxes
|
| Country of origin* | CZ |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3030 00 |
| Mounting method | Facing brickwork |
| Model | Single |
| Shape | Round |
| Equipped with | None |
| Connectable | No |
| Provided with revolving ring | No |
Packing details
| Packing level 1 | 8595057634923 |
| Packing level 2 | 8595057634923 |
| Packing level 3 | 8595057634923 |
Other Technical data
| Colour | Black |
| Width | 0 mm |
| Halogen free | Yes |

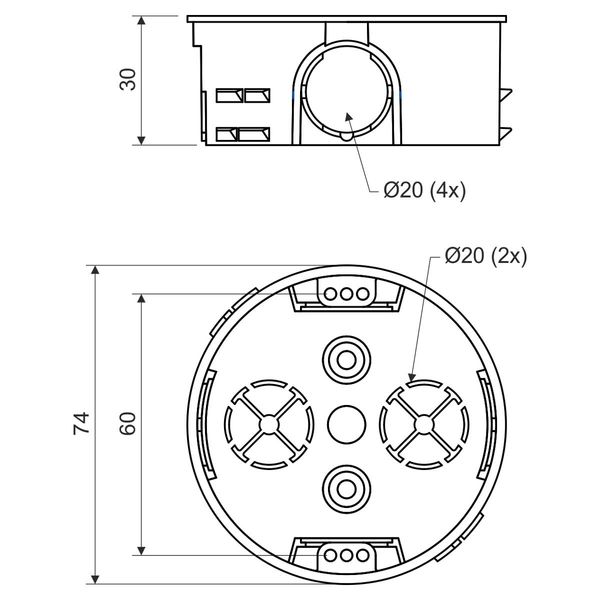

| Diameter | 73 mm |
| Construction type | Device connection box (round/square) |
| Inner depth | 29 mm |
| Length | 0 mm |
| Sealable | No |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 6 |
| Mounting switching equipment | Screwing |
| For number of electric fittings | 1 |
| Luminaire hook mounting | No |
| Max. conductor cross section | 4 mm² |
| With screening | No |
| With nail lugs | No |
| With screws | Yes |
| Air tight | No |
| Depth | 30 mm |
| Suitable for cable diameter | 7-20 mm |
| For tube diameter | 20 mm |
| Inlet from the rear | Yes |
| Pipe locking | No |
| Clamp position fixed | No |
| Number of poles of the clamp | 0 |
| Housing feed-through by seal membrane | No |
| Housing feed-through by nozzle | No |
| Housing feed-through by step membrane | No |
| Pipe locking optional | No |
| Number of included spouts | 0 |
| Housing feed-through by break-out opening | Yes |
| Transparent cover | No |
Downloads
Description
KP 68/2HF - Box instrumental, configuration FA, colour black, package - 10/150 pcs - for objects with increased need for protection of persons and property
