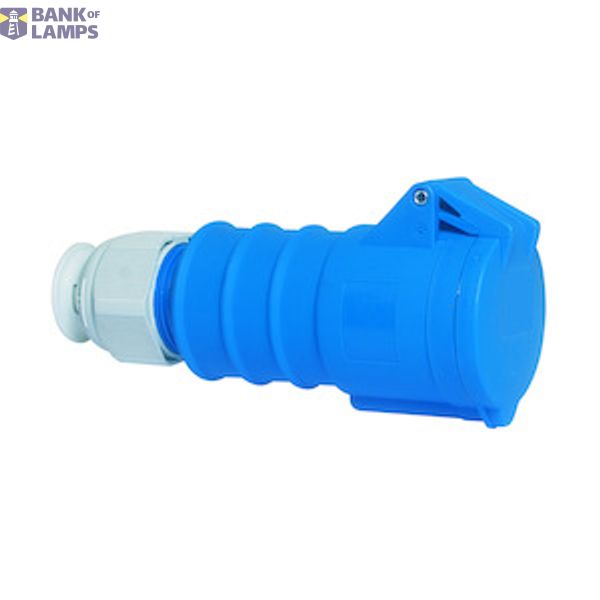

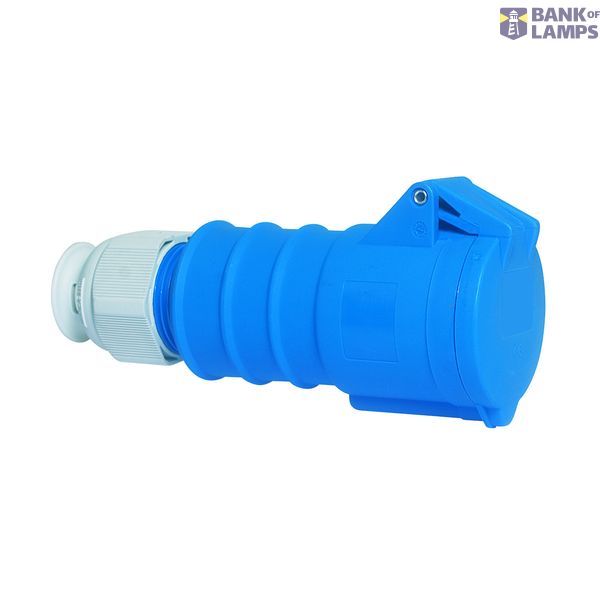

KOP 6h 16A 3P 230V IP44 QC MG TE Ni
Order only
Not Available
Technical Information
| Item condition | New |
| Manufacture name | KOP 6h 16A 3P 230V IP44 QC MG TE Ni |
| Brand | Bals |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 6990 00 |
| ETIM | EC001320 |
| IEC-amperage | 16 A |
| Connection system | Screw less terminal |
| Contact material | CuZn |
| Degree of protection (IP) | IP44 |
| Voltage according to EN 60309-2 | 230 V (50+60 Hz) blue |
Packing details
| Packing level 1 | 4024941315333 |
Other Technical data
| RAL-number | 5015 |
| Cable entry | Gland nut |
| Number of poles | 3 |
| Material | Plastic |
| Surface treatment contacts | Nickel-plated |
| Angle of plug | Straight |
| Military model | No |
| Clock hour position | 6 h |
| Identification colour | Blue |
Downloads
Description
- Schroefloze klemmen
- Hittebestendige contactdragers
- KONTEX contact
- Vernikkelde contacten
- Speciale trekontlasting
- Beschermingsklasse IP44
- Hittebestendige contactdragers
- KONTEX contact
- Vernikkelde contacten
- Speciale trekontlasting
- Beschermingsklasse IP44
