Bals

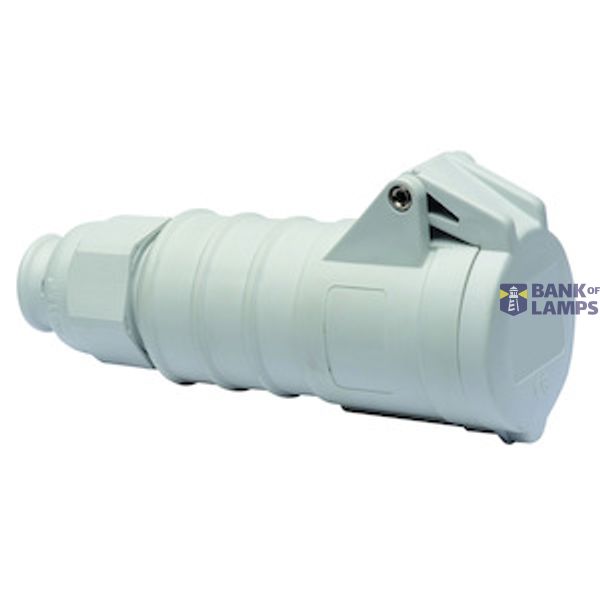

KOP 1h 16A 5P >50V IP44 QC MG Gr Ni

Order only Not Available

Technical Information

Item condition New
Manufacture name KOP 1h 16A 5P >50V IP44 QC MG Gr Ni
Brand Bals
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 6990 00
ETIM EC001320
IEC-amperage 16 A
Connection system Screw less terminal
Contact material CuZn
Degree of protection (IP) IP44
Voltage according to EN 60309-2 >50 V grey

Packing details

Packing level 1 4024941019651, 4024941019651

Other Technical data

RAL-number 7035
Cable entry Gland nut
Number of poles 5
Material Plastic
Surface treatment contacts Nickel-plated
Angle of plug Straight
Military model No
Clock hour position 1 h
Identification colour Grey

Downloads

Others Declaration RoHS Deep link REACH

Description

- Schroefloze klemmen
- Hittebestendige contactdragers
- KONTEX contact
- Vernikkelde contacten
- Speciale trekontlasting
- Beschermingsklasse IP44
