Bals

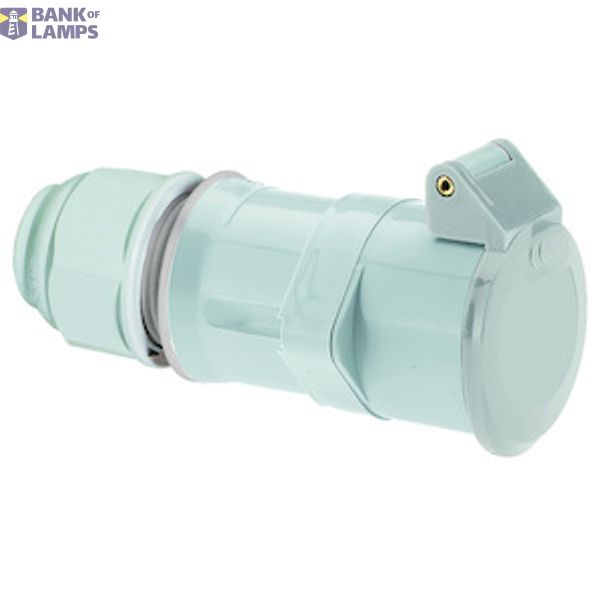

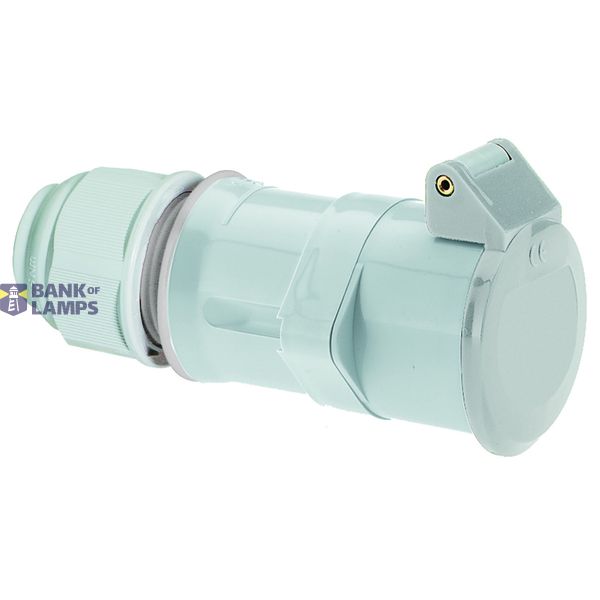

KOP 12h 16A 2P 42V IP44 MG Ni

Order only Not Available

Technical Information

Item condition New
Manufacture name KOP 12h 16A 2P 42V IP44 MG Ni
Brand Bals
Country of origin* DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 6990 00
ETIM EC001320
IEC-amperage 16 A
Connection system Screwed terminal
Contact material CuZn
Degree of protection (IP) IP44
Voltage according to EN 60309-2 40-50 V (50+60 Hz) white

Packing details

Packing level 1 4024941045230

Other Technical data

RAL-number 7035
Cable entry Gland nut
Number of poles 2
Material Plastic
Surface treatment contacts Nickel-plated
Angle of plug Straight
Military model No
Clock hour position 12 h
Identification colour Grey

Downloads

Others Deep link REACH Declaration RoHS

Description

- Schroefklemmen
- Vernikkelde contacten
- Speciale trekontlasting
- Beschermingsklasse IP44
