KO 97/L - Junction box, configuration NA, ochre colour, package- 80 pcs
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | KO 97/L - Junction box, configuration NA, ochre colour, package- 80 pcs |
| Brand | KOPOS |
| Country of origin* | CZ |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 3030 00 |
| ETIM | EC002601 |
| Mounting method | Hollow wall |
| Model | Single |
| Shape | Round |
| Equipped with | None |
| Connectable | No |
| Provided with revolving ring | No |
Packing details
| Packing level 1 | 8595057600171 |
Other Technical data
| Colour | Yellow |
| Width | 0 mm |
| Halogen free | No |

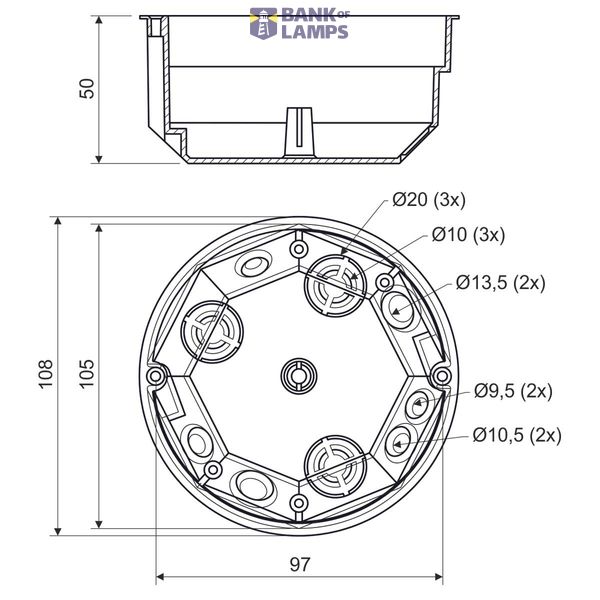

| Diameter | 103 mm |
| Construction type | Device connection box (round/square) |
| Inner depth | 48 mm |
| Length | 0 mm |
| Sealable | No |
| Circuit integrity | None |
| Material | Plastic |
| Number of inlets | 9 |
| Cover attachment | Screwed |
| For number of electric fittings | 0 |
| Luminaire hook mounting | No |
| Max. conductor cross section | 4 mm² |
| With screening | No |
| With nail lugs | No |
| With screws | Yes |
| Air tight | No |
| Depth | 50 mm |
| Suitable for cable diameter | 7-20 mm |
| For tube diameter | Other |
| Inlet from the rear | Yes |
| Pipe locking | No |
| Clamp position fixed | No |
| Number of poles of the clamp | 0 |
| Housing feed-through by seal membrane | No |
| Housing feed-through by nozzle | No |
| Housing feed-through by step membrane | No |
| Pipe locking optional | No |
| Number of included spouts | 0 |
| Housing feed-through by break-out opening | Yes |
| Transparent cover | No |
Downloads
Description

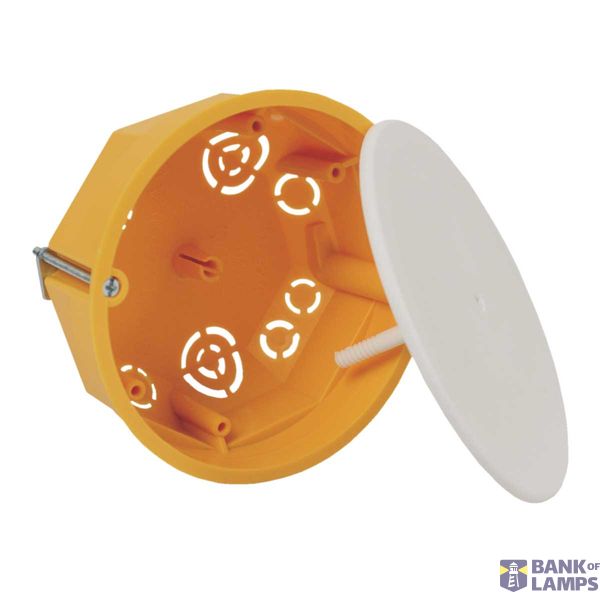

KO 97/L - Box branching-plasterboard., configuration NA, colour Ochre, package - 80 pcs - enough space for more extensive installations, mounting screws are fitted with three-threaded thread for easier handling
