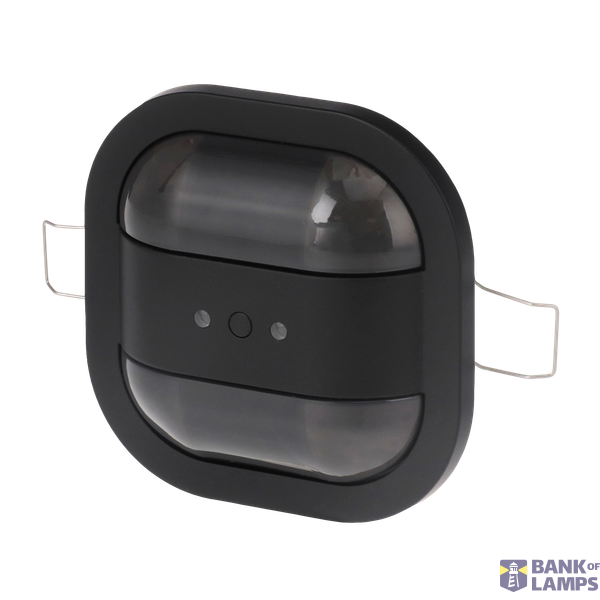

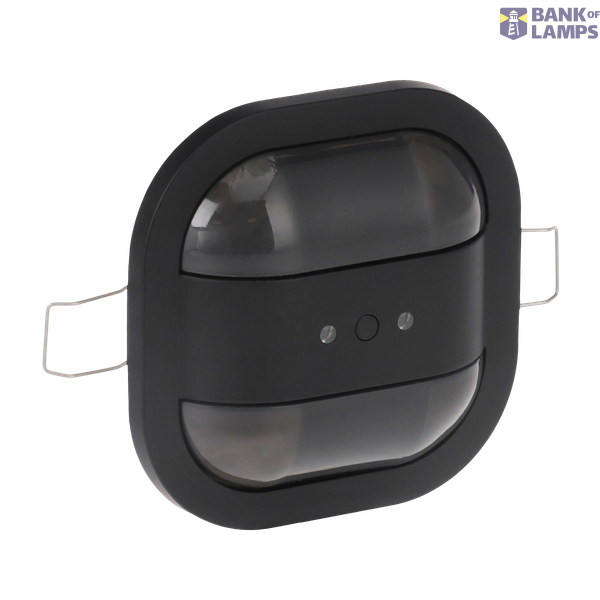

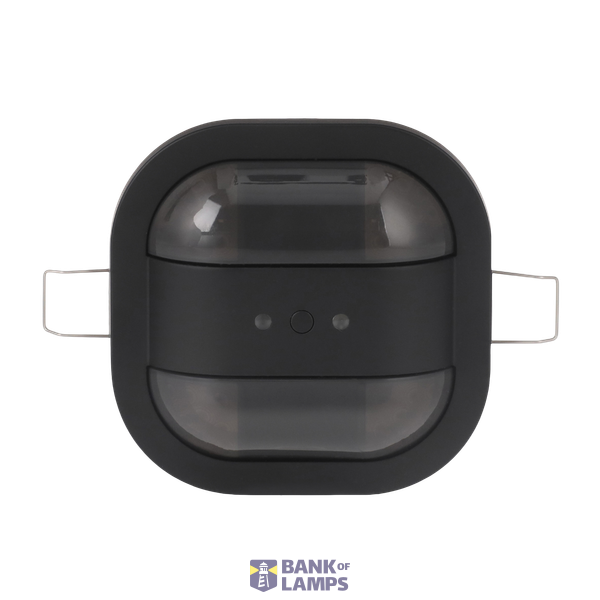

KNX Presence Mini B
Order only
Price (excl. VAT):
152,90 €
EAN: 4011395352465
MPN: 2CKA006132A0436
Package: 1
Estimate delivery time to our warehouse: 4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | KNX Presence Mini B |
| Brand | ABB |
| Categories |
Bus System Devices (KNX/Modbus)
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Model | Presence detector |
| Bus system KNX | Yes |
| Bus system radio frequent | No |
| Bus system Powernet | No |
| With bus connection | Yes |
| Other bus systems | Other |
| Bus system LON | No |
| Bus system KNX radio | No |
| Radio frequent bidirectional | No |
Packing details
| Packing level 1 | 4011395352465, 4011395352465 |
Other Technical data
| Mounting method | Surface mounted (plaster) |
| Colour | Black |
| Width | 45 |
| Height | 80 |
| Depth | 80 |
| Surface protection | Lacquered |
| Creep-under protection | Yes |
| Built-in depth | 29 |
| Number of channels | 2 |
| Staircase monitoring | Yes |
| Material quality | Thermoplastic |
| Max. transmission range frontally | 6 m |
| Max. transmission range sideways | 8 m |
| Material | Plastic |
| Substation input | Yes |
| RAL-number (similar) | 9005 |
| Teach-function for response value luminosity | Yes |
| Operation mode switch | No |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle vertical | - ° |
| Detection angle horizontal | - ° |
| Min. switch-on time | 10 s |
| Max. duty cycle | 1092 min |
| Response value luminosity adjustable | Yes |
| Switch-off delay self-learning | No |
| Optimum mounting height | m |
| Min. depth of built-in installation box | 29 mm |
| DALI-2 certified | No |
Description
Detection range (for mounting height 2.5 m, 3 m and 4 m): circular. Seated persons Ø: max. 5 m, max. 6.5 m and max. 9 m. Walking persons Ø: max. 6.5 m, max. 8 m and max. 10.5 m. Visible height 16 mm. With 2 channels. Targeted for connection and disconnection of lights bands depending on the room brightness. Regulation in response to the movement possible. Using the device as presence and/or movement detectors. Detectors application with 2 power off stages. Detectors application with integrated monitoring function. Constant light switch with up to two independent channels. Constant light switch with max. 2 outputs for brightness-dependent switching of two light bands in the area. With integrated KNX bus coupler. Suitable for false ceilings with a board thickness from 9 to 25 mm. Hole size: Ø 68 mm. Suitable for surface mounting installation. Cannot be installed in British Standard or VDE flushmounted box. Recommendation: Installation housing from Kaiser HaloX-O (Art.no. 1281-00) with corresponding cover plates (1281-xx for fair faced concrete) or IBTronic H120-68 from Spelsberg.
