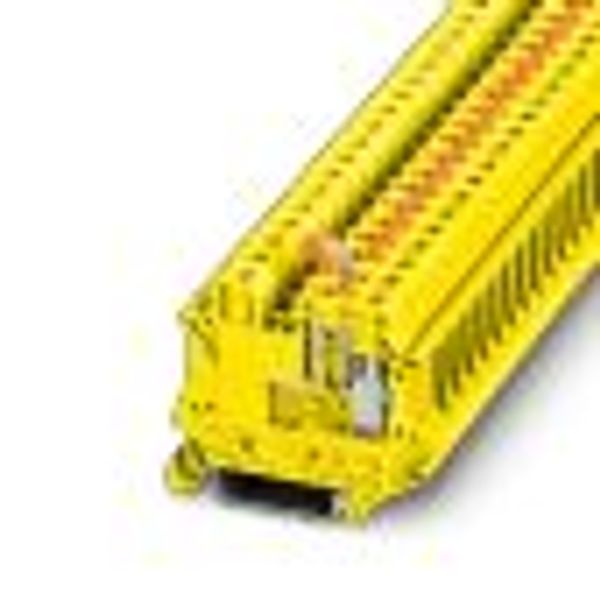

UT 6-MT P/P YE - Knife-disconnect terminal block image 1

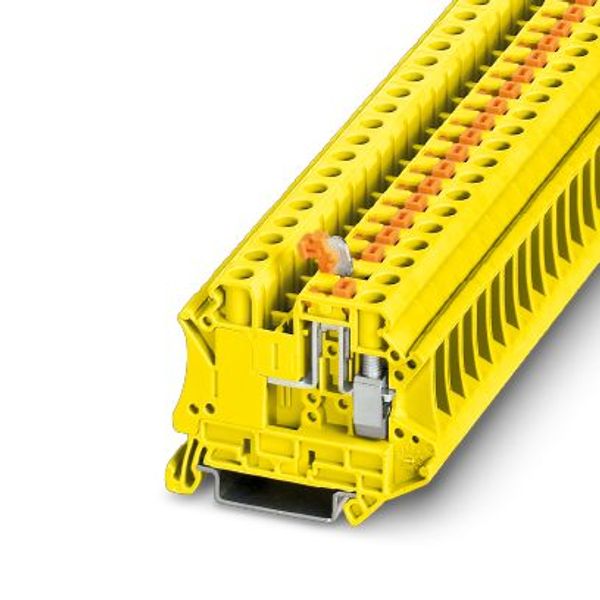

UT 6-MT P/P YE - Knife-disconnect terminal block image 2

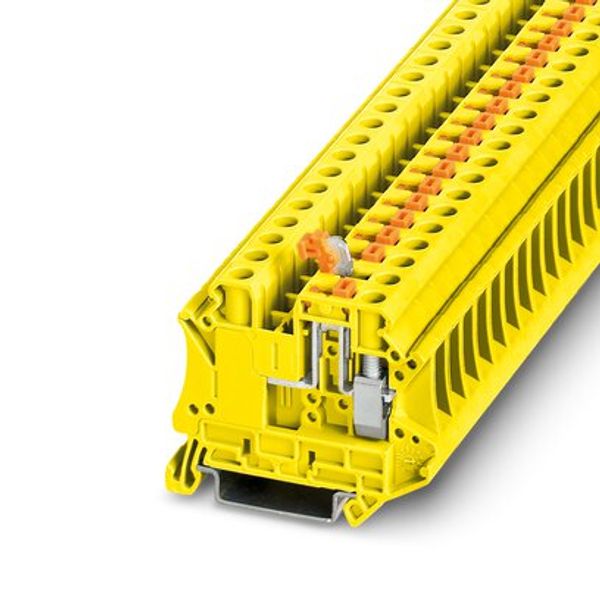

UT 6-MT P/P YE - Knife-disconnect terminal block image 3
UT 6-MT P/P YE - Knife-disconnect terminal block image 4
UT 6-MT P/P YE - Knife-disconnect terminal block thumbnail 1
UT 6-MT P/P YE - Knife-disconnect terminal block thumbnail 2
UT 6-MT P/P YE - Knife-disconnect terminal block thumbnail 3
UT 6-MT P/P YE - Knife-disconnect terminal block thumbnail 4
Phoenix Contact

Knife-disconnect terminal block Phoenix Contact UT 6-MT P/P YE

Order only
Price (excl. VAT):
2,73 € per pcs
This price is valid until 24.12.25
EAN: 4046356732604
MPN: 3064073
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name UT 6-MT P/P YE - Knife-disconnect terminal block
Brand Phoenix Contact
Categories DIN Rail Terminal Blocks
Country of origin PL
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 500 V
Type of electrical connection 1 Screw connection
Number of levels 1
Number of clamp positions per level 2
Connectable conductor cross section solid-core 0.2-10 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.25-6 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.2-10 mm²
Connectable conductor cross section multi-wired 0.2-2.5 mm²
Rated current In 20 A

Packing details

Packing level 1 4046356732604, 4046356732604

Other Technical data

Colour Yellow
Width 8.15 mm
Height 57.8 mm
Depth 49.1 mm
Operating temperature -60-105 °C
Inflammability class of insulation material according to with UL94 V0
Material insulation body Other

Description

Knife-disconnect terminal block, With test socket screws for insertion of test plugs, nom. voltage: 500 V, nominal current: 20 A, connection method: Screw connection, Rated cross section: 2.5 mm², cross section: 0.2 mm² - 10 mm², mounting: NS 35/7,5, NS 35/15, color: yellow
