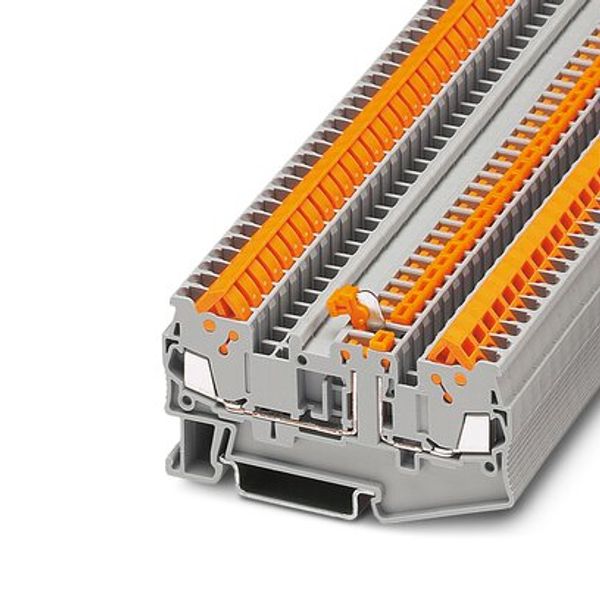

QTC 1,5-MT - Knife-disconnect terminal block image 1
QTC 1,5-MT - Knife-disconnect terminal block image 2
QTC 1,5-MT - Knife-disconnect terminal block image 3
QTC 1,5-MT - Knife-disconnect terminal block thumbnail 1
QTC 1,5-MT - Knife-disconnect terminal block thumbnail 2
QTC 1,5-MT - Knife-disconnect terminal block thumbnail 3
Phoenix Contact

Knife-disconnect terminal block Phoenix Contact QTC 1,5-MT

Order only Minimal order quantity: 50
Price (excl. VAT):
2,36 € per pcs
This price is valid until 24.12.25
Subtotal: 118,00 € MOQ: 50
EAN: 4017918933098
MPN: 3205103
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name QTC 1,5-MT - Knife-disconnect terminal block
Brand Phoenix Contact
Categories DIN Rail Terminal Blocks
Country of origin CN
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 400 V
Type of electrical connection 1 Insulation displacement connection
Number of levels 1
Number of clamp positions per level 2
Connectable conductor cross section solid-core 0.25-1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.25-1.5 mm²
Rated current In 17.5 A

Packing details

Packing level 1 4017918933098, 4017918933098

Other Technical data

Colour Grey
Width 5.15 mm
Height 76.43 mm
Depth 37.75 mm
Operating temperature -60-105 °C
Inflammability class of insulation material according to with UL94 V0
Material insulation body Other

Description

Knife-disconnect terminal block, nom. voltage: 400 V, nominal current: 17.5 A, 1 level, connection method: Quick connection, Rated cross section: 1.5 mm², cross section: 0.25 mm² - 1.5 mm², mounting: NS 35/7,5, NS 35/15, color: gray
