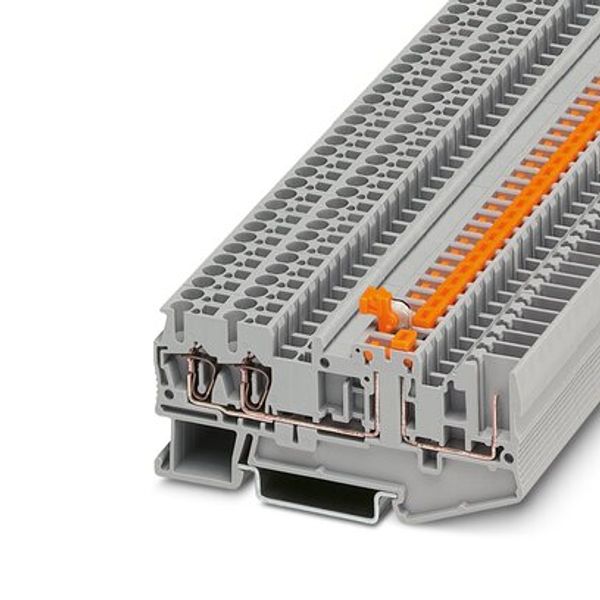

ST 2,5-TWIN-MT/1P - Knife-disconnect terminal block image 1
ST 2,5-TWIN-MT/1P - Knife-disconnect terminal block image 2
ST 2,5-TWIN-MT/1P - Knife-disconnect terminal block image 3
ST 2,5-TWIN-MT/1P - Knife-disconnect terminal block thumbnail 1
ST 2,5-TWIN-MT/1P - Knife-disconnect terminal block thumbnail 2
ST 2,5-TWIN-MT/1P - Knife-disconnect terminal block thumbnail 3
Phoenix Contact

Knife-disconnect terminal block Phoenix Contact ST 2,5-TWIN-MT/1P

Order only
Price (excl. VAT):
2,06 € per pcs
This price is valid until 24.12.25
EAN: 4017918907310
MPN: 3040766
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name ST 2,5-TWIN-MT/1P - Knife-disconnect terminal block
Brand Phoenix Contact
Categories DIN Rail Terminal Blocks
Country of origin PL
Harmonized System Code 8536 9010 00
Mounting method DIN rail (top hat rail) 35 mm
Rated voltage 400 V
Type of electrical connection 1 Spring clamp connection
Number of levels 1
Number of clamp positions per level 2
Connectable conductor cross section solid-core 0.08-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve 0.14-2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve 0.08-2.5 mm²
Rated current In 20 A

Packing details

Packing level 1 4017918907310, 4017918907310

Other Technical data

Colour Grey
Width 5.15 mm
Height 80.834 mm
Depth 36.5 mm
Operating temperature -60-105 °C
Inflammability class of insulation material according to with UL94 V0
Material insulation body Other

Description

Knife-disconnect terminal block, nom. voltage: 400 V, nominal current: 20 A, 1st level connection left, connection method: Spring-cage/plug-in connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray

Accessories

ZB 5 :UNBEDRUCKT - Zack marker strip
Order only
Phoenix Contact
ZB 5 :UNBEDRUCKT - Zack marker strip
0,238 € per pcs
This price is valid until 24.12.25
Subtotal: 2,38 € MOQ: 10
EAN: 4017918015473
MPN: 1050004
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
E/AL-NS 35 - End bracket
Order only
Phoenix Contact
E/AL-NS 35 - End bracket
2,08 € per pcs
This price is valid until 24.12.25
Subtotal: 20,80 € MOQ: 10
EAN: 4017918017439
MPN: 1201662
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
ISH 2,5/1,0 - Insulating sleeve
Order only
Phoenix Contact
ISH 2,5/1,0 - Insulating sleeve
0,252 € per pcs
This price is valid until 24.12.25
Subtotal: 12,60 € MOQ: 50
EAN: 4017918090401
MPN: 3002869
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
ISH 2,5/0,5 - Insulating sleeve
Order only
Phoenix Contact
ISH 2,5/0,5 - Insulating sleeve
0,254 € per pcs
This price is valid until 24.12.25
Subtotal: 12,70 € MOQ: 50
EAN: 4017918104405
MPN: 3002856
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
ZBF 5:UNBEDRUCKT - Zack Marker strip, flat
Order only
Phoenix Contact
ZBF 5:UNBEDRUCKT - Zack Marker strip, flat
0,29 € per pcs
This price is valid until 24.12.25
Subtotal: 2,90 € MOQ: 10
EAN: 4017918180355
MPN: 0808642
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
PS-5 - Test plug
Order only
Phoenix Contact
PS-5 - Test plug
3,22 € per pcs
This price is valid until 24.12.25
Subtotal: 32,20 € MOQ: 10
EAN: 4017918818920
MPN: 3030983
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
DP PS-5 - Spacer plate
Order only
Phoenix Contact
DP PS-5 - Spacer plate
0,281 € per pcs
This price is valid until 24.12.25
Subtotal: 2,81 € MOQ: 10
EAN: 4017918818975
MPN: 3036725
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
P-DI - Isolating plugs
Order only
Phoenix Contact
P-DI - Isolating plugs
0,52 € per pcs
This price is valid until 24.12.25
Subtotal: 26,00 € MOQ: 50
EAN: 4017918901998
MPN: 3036783
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
PAI-4-FIX-5/6 BU - Test adapter
Order only
Phoenix Contact
PAI-4-FIX-5/6 BU - Test adapter
0,96 € per pcs
This price is valid until 24.12.25
Subtotal: 9,60 € MOQ: 10
EAN: 4046356520676
MPN: 3035975
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
PAI-4-FIX-5/6 RD - Test adapter
Order only
Phoenix Contact
PAI-4-FIX-5/6 RD - Test adapter
0,96 € per pcs
This price is valid until 24.12.25
Subtotal: 9,60 € MOQ: 10
EAN: 4046356520683
MPN: 3035976
Box: 1
Estimate delivery time at our warehouse (approx.): 4-6 weeks
