KMD-11 - MULTIMETRO
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
34,40 €
EAN: 8426487483426
MPN: 0767502
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | KMD-11 - MULTIMETRO |
| Brand | KOBAN |
| Categories |
Measuring instruments
|
| Country of origin | CN |
| Harmonized System Code | 9030 3100 90 |
| Indication | Digital |
| Measuring range selection | Automatic |
| Max. voltage measuring range, AC | 1000 V |
| Max. voltage measuring range, DC | 1000 V |
| Max. current measuring range, AC | 10 A |
| Max. current measuring range, DC | 10 A |
| Max. resistance measuring range | 60 MOhm |
| Measuring circuit category | CAT III |
| Max. capacitance measuring range | 4000 µF |
| Max. frequency measuring range | 10000 kHz |
Packing details
| Packing level 1 | 8426487483426 |
Other Technical data
| Measured value memory | No |
| True RMS measurement | No |
| Continuity test | Yes |
| Isolation resistance measuring range | - MOhm |
| Interface | No |
| Capacitance measurement | Yes |
| Frequency measurement | Yes |
| With decibel measurement (dB) | No |
| Data hold | Yes |
| IR interface | No |
| Explosion-tested version | No |
| Bluetooth interface | No |
| Resistance test/diode test | Yes |
| Inductance measurement | No |
| Lowest resolution, DC voltage | 0.1 mV |
| Lowest resolution, DC current | 1000 µA |
| Lowest resolution, AC voltage | 0.1 mV |
| Lowest resolution, AC current | 1000 µA |
| Lowest resolution, resistance | 0.1 Ohm |
| With conductivity measurement | Yes |
| Max. value storage | Yes |
| Multiple display | No |
| Min. value storage | Yes |
| Nominal test voltage 100 V | No |
| Nominal test voltage 1000 V | No |
| Nominal test voltage 250 V | No |
| Nominal test voltage 500 V | No |
| Relative value measurement | No |
| Peak value memory | Yes |
| Duty cycle measurements | No |
| Temperature measurement | No |
| Lowest resolution, capacitance | 0.00001 µF |
| Lowest resolution, frequency | 0.001 Hz |
| Milliohm measurement with 4 wire technique (Kelvin connection) | No |
| Temperature measurement RTD | No |
| Temperature measurement TC | No |
| Nominal test voltage 10 V | No |
| Nominal test voltage 50 V | No |
| Cable length measurement | No |
| Cable symmetry testing for two wire connections a-b-E | No |
| Power and energy measurement | No |
| Harmonics analysis/power quality | No |
| Rotational speed measuring | No |
| Automatic circuit breaker | No |
| Max. voltage measuring circuit category | 600 V |
| With display backlight | No |
| Scaling bar graph lineair | No |
| Scaling bar graph logarithmic | No |
Downloads
Description

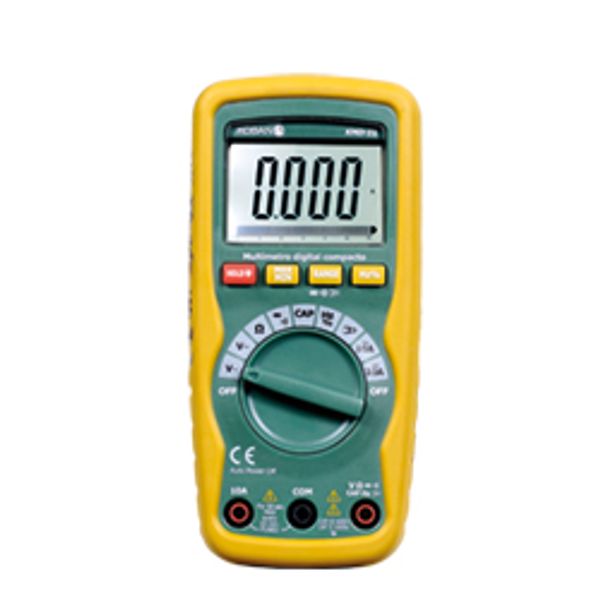

Multímetro digital con categoría de medida CATIII 600V, 2000 cuentas de resolución y pantalla retroiluminada. Realiza mediciones de tensión y corriente AC/DC, resistencia, capacidad y frecuencia. Dispone de otras funciones como prueba de diodos y continuidad, ciclo de trabajo?
