KLL1 6L 2/5 M25K
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | KLL1 6L 2/5 M25K |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 182 mm |
| Length | 1.25 mm |
| Height/depth | 114 mm |
| Lamp type | LED exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Wide beam 41-80° |
| Colour temperature | 6500 K |
| Rated luminous flux according to IEC 62722-2-1 | 5.92 lm |
Packing details
| Packing level 1 | 4251510710170 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Lamp holder | None |
| Conductor cross section | 4 mm² |
| Connection type | Push-in clamp |
| Voltage type | AC/DC |
| Suitable for lamp power | 47 W |
| Type of control gear | LED operating device current-controlled |
| Adjustable | No |
| Number of poles | 5 |
| Housing material | Plastic |
| Material cover | Plastic, transparent |
| For Ex-zone gas | 1, 2 |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Colour of light | White |
| Constant light output (CLO) | No |
| Type of wiring | Through wiring included |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -30-55 °C |
| Light distributor | Diffuser lens/optic/panel |
| Exchangeable control gear | No |
| Power factor | 0.9 |
Description

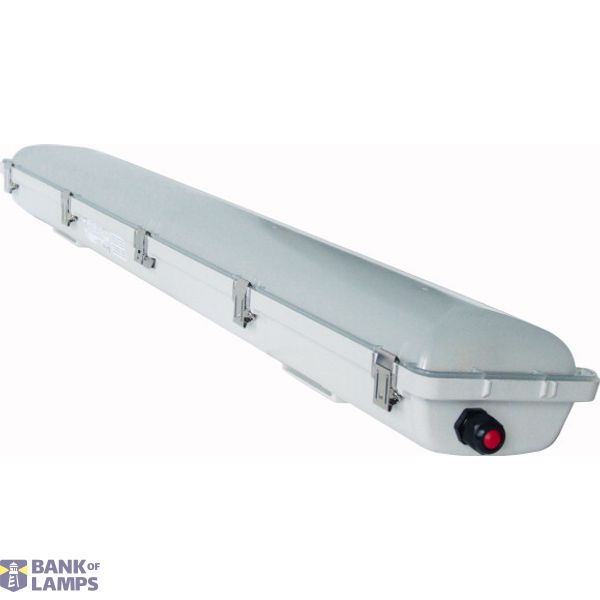

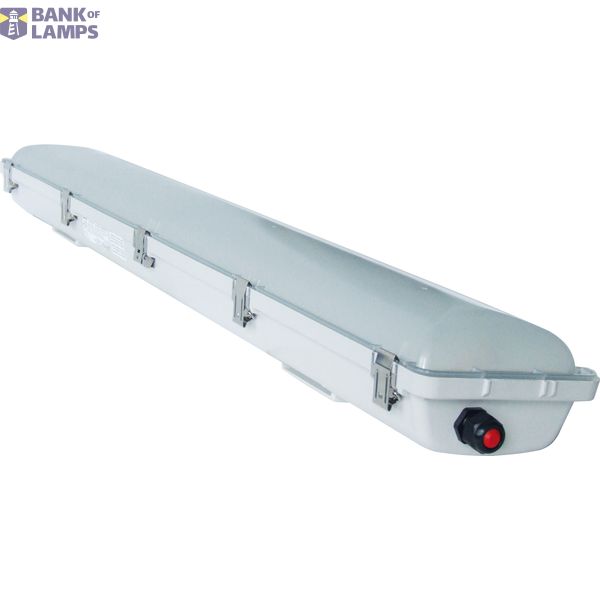

Ex-LED light fitting with for Zone 1/21/2/22KLL1 6L 2/5 M25K, 47 W, 2 x M25 plastic cable gland, 1 x M25 threaded plug
