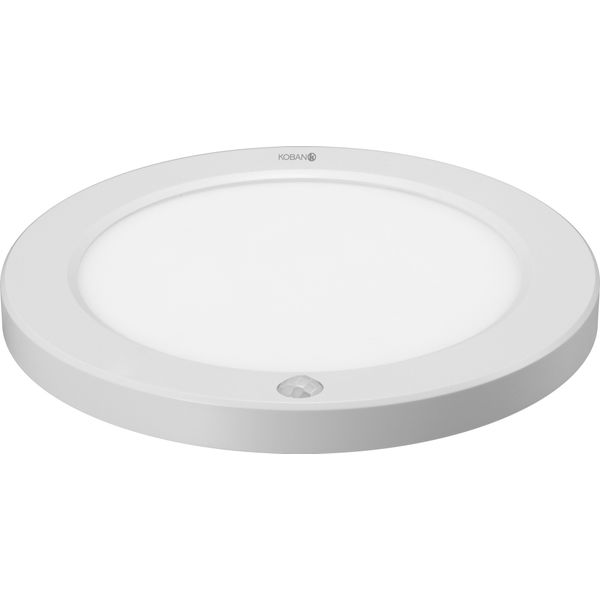

KLD11 - PLAFON LED
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 8426487600502
MPN: 0767978
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | KLD11 - PLAFON LED |
| Brand | KOBAN |
| Categories |
Wall and ceiling luminaires
Ceiling mounting lamps Built-in mounting lamps Surface mounting lamps |
| Country of origin | CN |
| Harmonized System Code | 9032 8900 90 |
| Colour housing | White |
| Height/depth | 19 mm |
| Lamp type | LED not exchangeable |
| Nominal voltage | 220-240 V |
| Colour temperature | 3000-6000 K |
| Max. system power | 18 W |
Packing details
| Packing level 1 | 8426487600502 |
| Packing level 2 | 8426487600502 |
Other Technical data
| Outer diameter | 230.7 mm |
| Connection type | Screwed terminal |
| Voltage type | AC |
| With movement sensor | Yes |
| Suitable for lamp power | 10-18 W |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Housing material | Plastic |
| Suitable for light line configuration | No |
| Suitable for emergency lighting | No |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic matt/satinized |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | Yes |
| Suitable for built-in mounting | Yes |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | Yes |
| Suitable for surface mounting | Yes |
| Nominal current | - mA |
| Colour of light | White |
| With air slots | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Ending |
| Rated ambient temperature according to IEC62722-2-1 | -20-40 °C |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | Yes |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| Light distributor | Diffuser lens/optic/panel |
| Dimming DSI | No |
| Operation by Bluetooth | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Dimming DALI-2 | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 30 mm |
| Surface protection housing | Plastic-coated |
Downloads
Description
Plafón con iluminación LED y detector de movimiento por tecnología PIR, destinado a montaje en techo o pared, en formato en superficie o empotrado. Su doble tecnología LED y PIR permiten un control eficiente de la iluminación. Dispone de temperatura de color ajustable (3000K; 4000K; 6000K), potencia ajustable (10W; 15W; 18W), con nivel luminoso de 1000; 1500 y 1800 lúmenes respectivamente. Es ideal para su utilización en múltiples instalaciones de interior.
