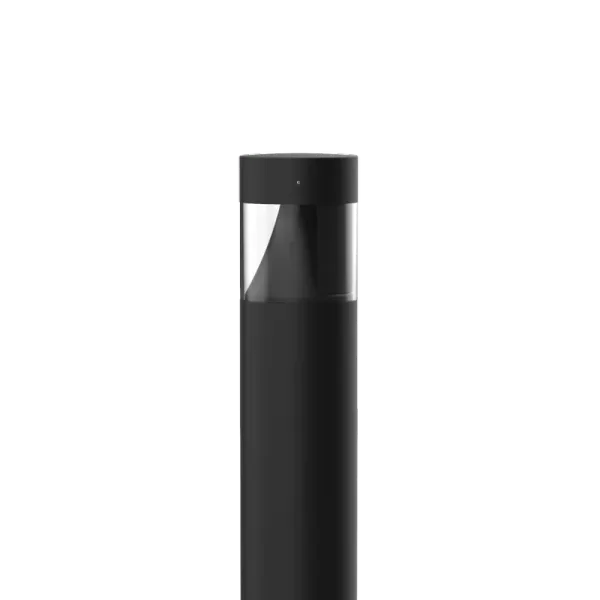

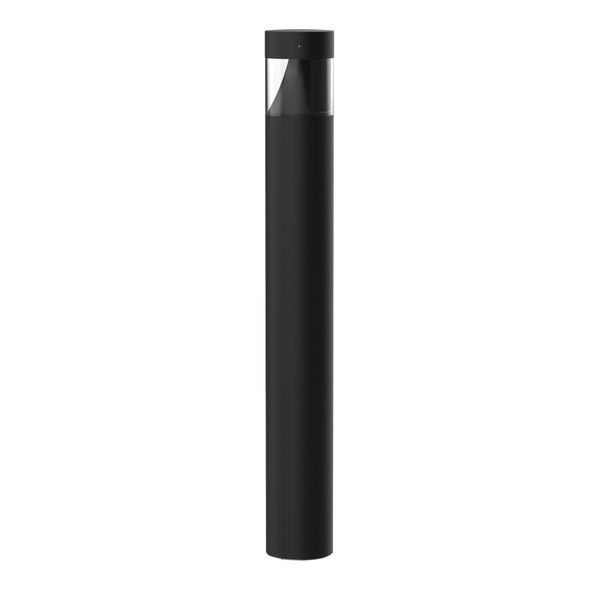

KHA CITY COMFORT 12 20 A55/M 830 BLACK
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 8018367716610
MPN: 3113970
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | KHA CITY COMFORT 12 20 A55/M 830 BLACK |
| Brand | Performance in Lighting |
| Categories |
Street and park luminaires
|
| Country of origin | IT |
| Harmonized System Code | 9405 4239 00 |
| Colour rendering index CRI | 80-89 |

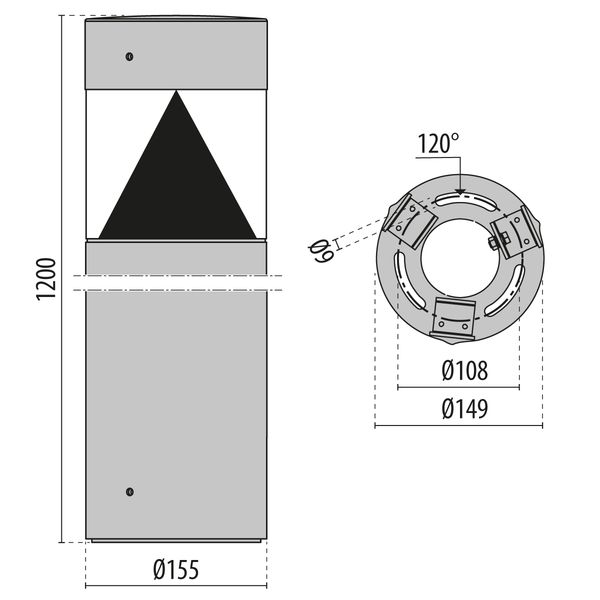

| Height/depth | 1200 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 220 V |
| Degree of protection (IP) | IP66 |
| Beam angle | Other |
| Colour temperature | 3000 K |
| Max. system power | 20 W |
| Luminaire efficacy | 65 lm/W |
Packing details
| Packing level 1 | 8018367716610, 8018367716610 |
Other Technical data
| Protection class | II |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| With base plate | Yes |
| Connection type | Screwed terminal |
| Colour housing | Black |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 20 W |
| Type of control gear | LED operating device current-controlled |
| Diameter | 155 mm |
| With light sensor | No |
| Number of poles | 2 |
| Housing material | Aluminium |
| Type of luminaire | Bollard luminaire |
| Light outlet | Direct |

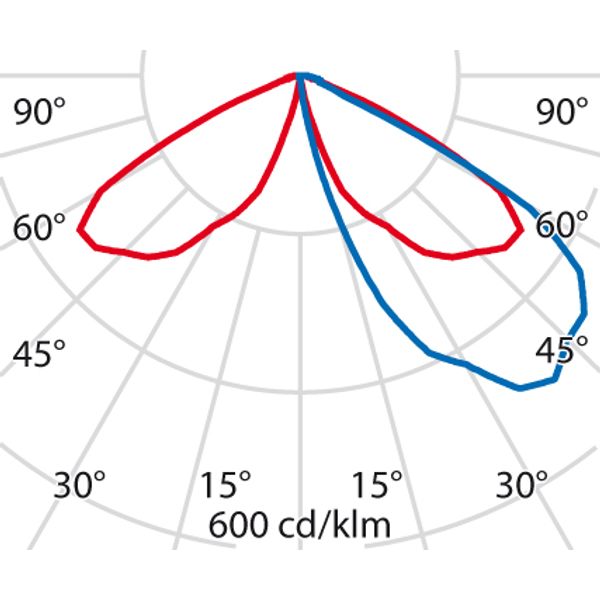

| Light sharing | Asymmetric |
| Material cover | Plastic, transparent |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Nominal current | 950 |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Type of wiring | Suitable for through wiring |
| Light distributor | Diffuser lens/optic/panel |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 46 |
| Max. number of luminaires per miniature circuit breaker B16 | 28 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Housing material quality | Other |
| Power factor | 0.9 |
Downloads
Description
Serie van lichtzuilen, bestaande uit: Afscherming van transparant Uv-bestendig polycarbonaat. Optiekeenheid bestaande uit speciaal uitgedachte lenzen voor maximaal rendement en optimale lichtverdeling. De lenzen zijn uit een specifiek optisch polycarbonaat vervaardigd die de best indenkbare transmittantie gegarandeerd, gecombineerd met de hoogste weerstand tegen UV stralen en warmte. Koellichaam van aluminium. Pakking in slijtvast siliconen. Elektrische componenten compartiment van technopolymeer. Compleet met extra voorziening voor bescherming tegen piekspanningen van het netwerk tot aan 10 kV (SPD). Elektrische aansluiting middels aansluitdoos IP68 vervaardigd van technopolymeer, verbonden met H07RN-F Neopreen kabel aan het armatuur, geschikt voor doorvoering en kabels Ø 7 - 13,5 mm. Hiermee is het armatuur aan te sluiten zonder te openen. Externe schroeven van roestvrij staal. Voor montage in cement (sokkel) zijn ankerbouten separaat leverbaar als accessoire.
