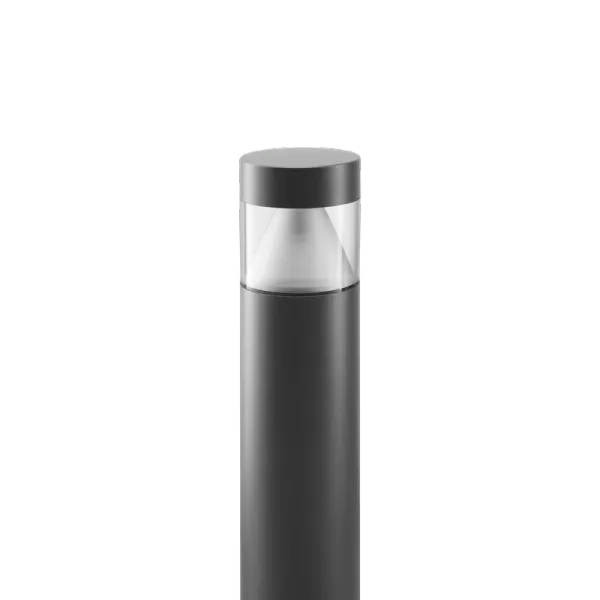

KHA 9/AL-KLII 15W 3000K-96 ANTHRACITE
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
470,93 €
EAN: 8021944064790
MPN: 06063596
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | KHA 9/AL-KLII 15W 3000K-96 ANTHRACITE |
| Brand | Performance in Lighting |
| Categories |
Street and park luminaires
|
| Country of origin | IT |
| Harmonized System Code | 9405 4239 00 |
| Colour rendering index CRI | 80-89 |

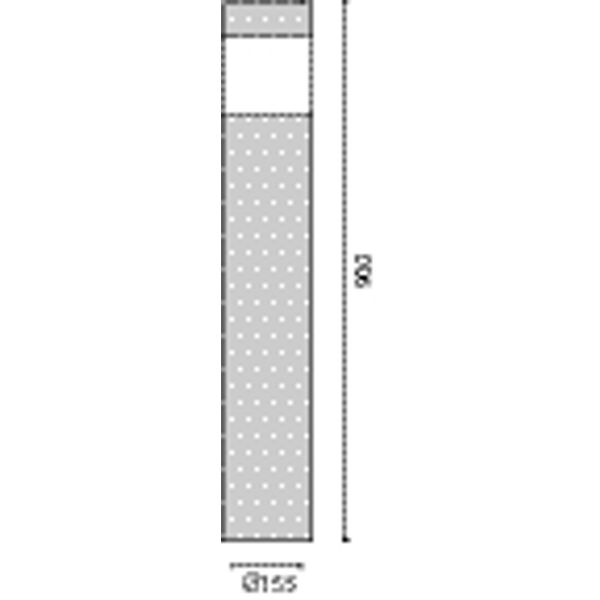

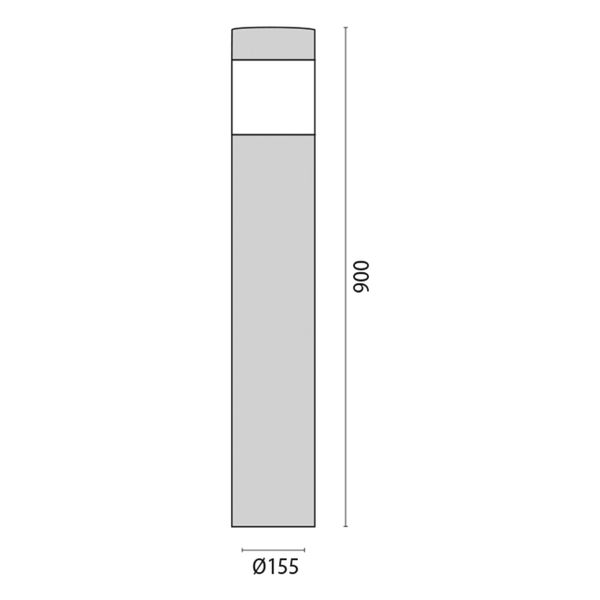

| Height/depth | 900 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK10 |
| Nominal voltage | 220 V |
| Degree of protection (IP) | IP66 |

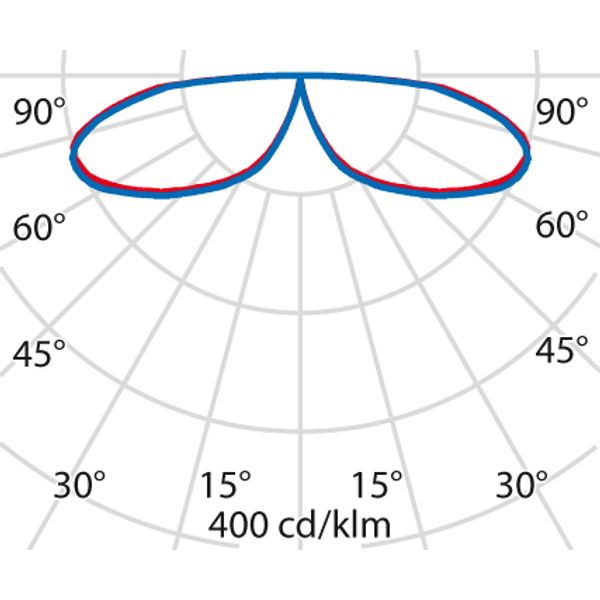

| Beam angle | Extreme wide beam >80° |
| Colour temperature | 3000 K |
| Max. system power | 19 W |
| Luminaire efficacy | 62.2 lm/W |
Packing details
| Packing level 1 | 8021944064790, 8021944064790 |
Other Technical data
| Protection class | II |
| Lamp holder | Other |
| With base plate | Yes |
| Connection type | Screwed terminal |
| Colour housing | Grey |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 16 W |
| Type of control gear | LED operating device current-controlled |
| Diameter | 155 mm |
| With light sensor | No |
| Housing material | Aluminium |
| Type of luminaire | Stele |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Plastic, transparent |
| With light source | Yes |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Nominal current | 500 |
| Colour of light | White |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Light distributor | Diffuser lens/optic/panel |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 40 |
| Max. number of luminaires per miniature circuit breaker B16 | 24 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 91 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 82.8 % |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | Yes |
| Housing material quality | Other |
| Power factor | 0.9 |
Downloads
Description
Armatuur voor binnen en buiten, voor bevestiging aan de vloer, bestaande uit: Behuizing en deksel van AISI 316 elektro-gepolijst RVS of van aluminium met polyester poedercoating. Afscherming van transparant Uv-bestendig polycarbonaat. Reflectoren van uiterst zuiver aluminium gepolijst en geoxideerd. Pakking in slijtvast siliconen. Verbindingsbox van technopolymeer met zekeringhouder om de elektrische verbinding te vergemakkelijken. De LED versies zijn compleet met LED Array met zeer hoge prestaties. Profiel van geanodiseerd geëxtrudeerd aluminium voor een correcte dissipatie van de LED lichtbron. Externe schroeven van roestvrij staal. Elektrische componenten compartiment van technopolymeer. Voor montage in cement (sokkel) zijn ankerbouten separaat leverbaar als accessoire. Voor lijnverbinding is een set met scheurbestendige kabelklem als accessoire leverbaar. Basis voor bevestiging aan de vloer van spuitgietaluminium met polyester poedercoating na chemische conversiebehandeling van het oppervlak.
