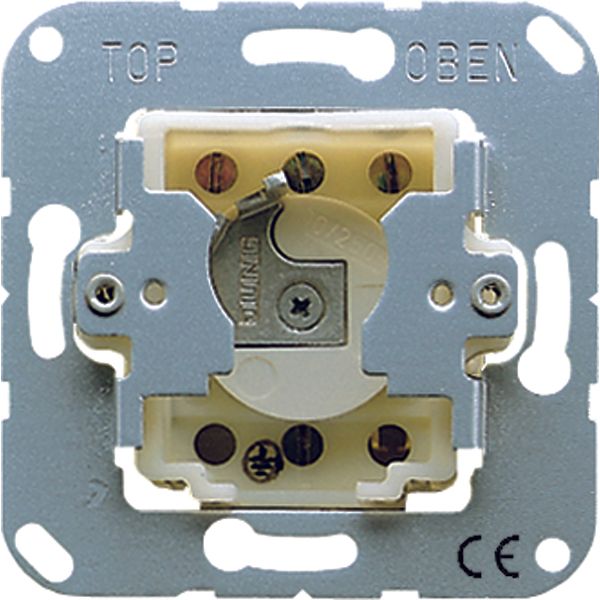

Key Switch Wu500 CD106.18WU
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
63,45 €
EAN: 4011377730601
MPN: CD106.18WU
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Key Switch Wu500 CD106.18WU |
| Brand | Jung |
| Categories |
Switches
|
| Country of origin | DE |
| Harmonized System Code | 8536 5080 00 |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element |
| Method of operation | Key |
| Halogen free | Yes |
| With mounting plate | No |
| Connection type | Screwed terminal |
| Illumination | No |
| Built-in depth | 32 mm |
| Rated current | 0 A |
| Feedback-signal contact | No |
| Type of fastening | Screw mounting |
| Wiring system | Two-way switch |
| Number of rockers | 1 |
| RAL-number (similar) | 0 |
| Switching current for fluorescent lamps | 16 AX |
| Push button switch | No |
| Washing machine switch | No |
| Suitable for degree of protection (IP) | IP44 |
| Device width | 71 mm |
| Device height | 71 mm |
| Device depth | 0 mm |
| Label space/information surface | No |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377730601 |
Downloads
Description
Key Switch Wu500 CD106.18WU operates as a basic element in a two-way power switching system, designed for controlling electrical circuits with manual key operation.Typically used for secure mechanisms or isolated control points. Flush mounted installation depth at 32 mm.Device dimensions measure 71 mm width, 71 mm height.Key-operated mechanism rated for nominal voltage of up to 250 V using screwed terminal connections.Impact strength and material quality unspecified but halogen-free construction confirmed.Degree of protection suitable for IP44 environments with screw mounting fastening method included in the design.Two-way wiring switch supports fluorescent lamp currents rated at 16 AX without illumination or feedback signal contact features present within the setup configuration specifications available
