Key switch/push-button 804.28G

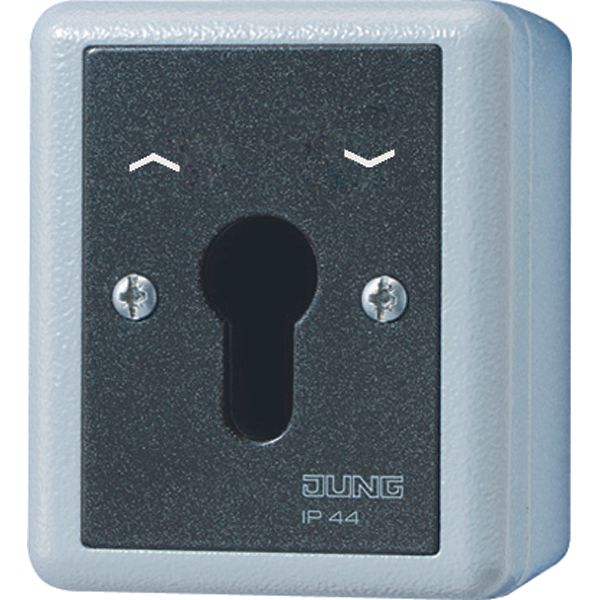

Name: Key switch/push-button 804.28G
Brand: Jung
Price: 145.210 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

145,21 €

This price is valid until 24.12.26

EAN: 4011377879904

MPN: 804.28G

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	Key switch/push-button 804.28G
Brand	Jung
Categories	Switches
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 5080 00
Nominal voltage	250 V
Mounting method	Surface mounted (plaster)
Assembly arrangement	Basic element with complete housing
Method of operation	Key
Colour	Grey
Model	2-pole switch
Halogen free	Yes
Surface protection	Other
Rated current	10 A
Label space/information surface	No
Material quality	Thermoplastic
Number of poles	2
Material	Plastic
Type of fastening	Mounting with screw
Number of buttons	0
Electrical and mechanical locking	No
RAL-number (similar)	7035
Mechanical controllable	Yes
Transparent	No
Surface finishing	Glossy
Electronic controllable	No
Suitable for degree of protection (IP)	IP44
Number of modules (module system)	0
Min. depth of built-in installation box	0 mm

Packing details

Packing level 1	4011377879904
Packing level 2	4011377879904

Downloads

Deep link REACH Product data sheet

Description

Key switch/push-button 804.28G designed for switching or isolating circuits in power systems, allows key-operated actuation for added security.Surface-mounted plaster setup rated for 10 A and nominal voltage of 250 V.Halogen-free thermoplastic construction ensures safety and durability, with a glossy grey finish matching RAL 7035 shade.IP44 protection provides resistance against water ingress and dust exposure.Operated via a key mechanism;mechanically controllable;assembly arrangement as basic element with complete housing secured by screw fastening system.Built-in dimensions undefined;device width, height, depth undefined;electrical locking absent;mechanical locking absent;no button input functionality registered on part specifications.Connection type unspecified but halogen-free plastic identified as primary material composition alongside surface protection marked “Other.”
