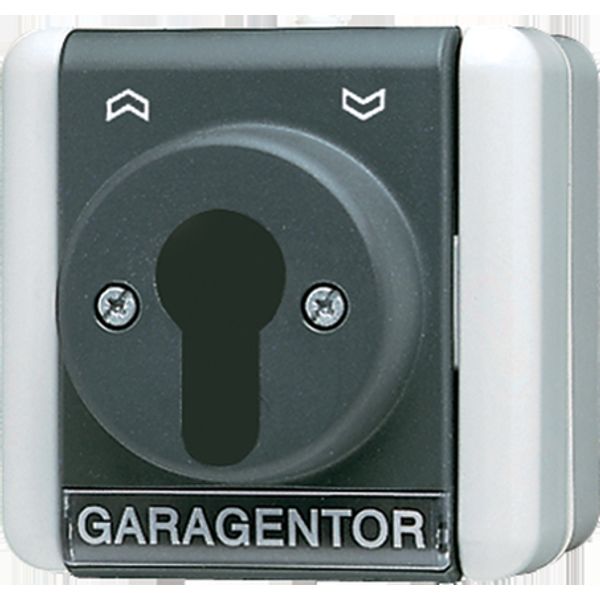

Key switch/push-button 804.18W
Order only
Price (excl. VAT):
65,42 €
EAN: 4011377660304
MPN: 804.18W
Box: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Key switch/push-button 804.18W |
| Brand | Jung |
| Categories |
Switches
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Nominal voltage | 250 V |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Basic element with complete housing |
| Method of operation | Key |
| Colour | Grey |
| Model | 1-pole switch |
| Halogen free | Yes |
| Surface protection | Other |
| Rated current | 10 A |
| Label space/information surface | Yes |
| Material quality | Thermoplastic |
| Number of poles | 1 |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Number of buttons | 0 |
| Electrical and mechanical locking | No |
| RAL-number (similar) | 7035 |
| Mechanical controllable | Yes |
| Transparent | No |
| Surface finishing | Glossy |
| Electronic controllable | No |
| Suitable for degree of protection (IP) | IP44 |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377660304 |
Downloads
Description
The key switch/push-button 804.18W is designed to interrupt or activate circuits within a power system, serving as a manually operated device for control tasks requiring basic on/off switching functionality.Used in surface-mounted installations, it offers reliable manual operation. Rated current:10 A.Nominal voltage:250 V.Number of poles:1.Colour:Grey (RAL 7035 approximation).Material quality:Thermoplastic;material:Plastic.Surface finishing:Glossy;surface protection marked as "Other." Mounting method designated for plaster with mounting via screws.Assembly arrangement includes the basic element housed completely, halogen-free according to specification.Label space/information surface present as noted, mechanical controllable without any electrical locking mechanism specified here—integrated IP44 degree of protection ensures resilience against solid objects and water splashes.Method of operation keyed;protective features allow suitability in standardized environments or exposed spaces demanding similar durability thresholds per regulations.;
