key sw. FM Alarm Connect
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | key sw. FM Alarm Connect |
| Brand | Gira |
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5015 00 |
| ETIM | EC001590 |
| Nominal voltage | 12 V |
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element |
| Method of operation | Key |
| Rated current | 0 A |
| Type of fastening | Mounting with claw and screw |
| Wiring system | 2-pole switch |
| Suitable for degree of protection (IP) | IP54 |
Packing details
| Packing level 1 | 4010337110705 |
Other Technical data
| Colour | Other |
| Halogen free | No |
| With mounting plate | No |
| Connection type | Other |
| Illumination | No |
| Surface protection | Other |
| Built-in depth | 0 mm |
| Feedback-signal contact | No |
| Material quality | Other |
| Material | Other |
| Number of rockers | 1 |
| Switching current for fluorescent lamps | 0 AX |
| Push button switch | No |
| Washing machine switch | No |
| Device width | 72 mm |
| Device height | 102 mm |
| Device depth | 61 mm |
| Label space/information surface | No |
| Number of modules (module system) | 1 |
| IFTTT support available | No |
| Min. depth of built-in installation box | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Heating switch | No |
| Anti-bacterial treatment | No |
Description

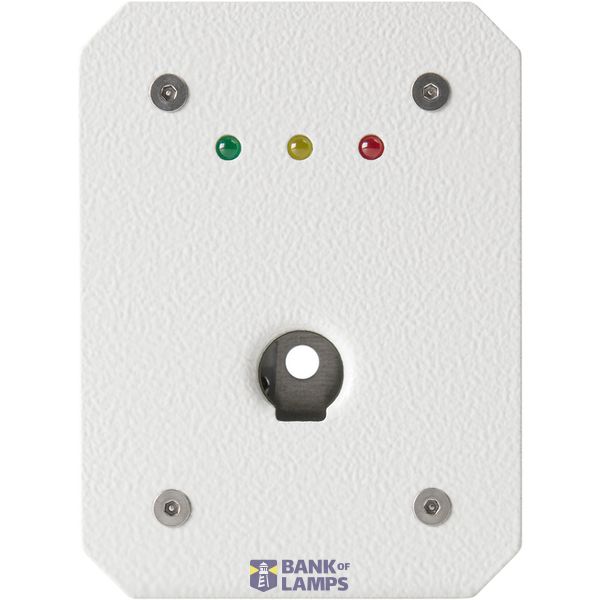

Key switch Flush-mounted Features: For activating and deactivating alarm control units. Suitable for use with commercially available profile semi-cylinder (observe installation instructions). Sealed housing for indoor and outdoor use. Features two internal, separate switches with changeover contact that can be set separately to permanent or impulse contact. Three LEDs (red, yellow, green) with series resistor and reverse polarity protection can be freely assigned. Integrated buzzer for acknowledgement or refusal indication can be freely assigned. Tear-off and lift-off contact for tamper protection. Front drill hole protection
