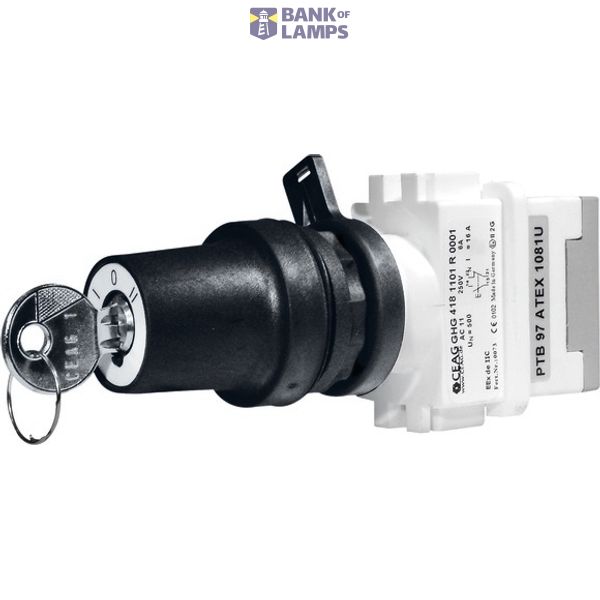

KEY OPERATED SWITCH, CONTACT SYSTEM 4
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | KEY OPERATED SWITCH, CONTACT SYSTEM 4 |
| Brand | EATON |
| ETIM | EC001028 |
| Colour button | White |
| Number of command positions | 1 |
| Type of button | Flat |
| Degree of protection (IP) | IP23 |
Packing details
| Packing level 1 | 4250217408991 |
Other Technical data
| Hole diameter | 31.5 mm |
| Suitable for illumination | No |
| Spring-return | No |
| Colour front ring | Black |
| Type of electric connection | Screw connection |
| Width opening | 32.7 mm |
| Height opening | 32.7 mm |
| Material front ring | Plastic |
| With front ring | Yes |
| Construction type lens | Round |
| Supply voltage lamp | 0 V |
| Switching function latching | Yes |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | Other |
Description
418 8195, key operated switch, contact system 4, label ''HAND 0 AUTO'', silver contacts0
