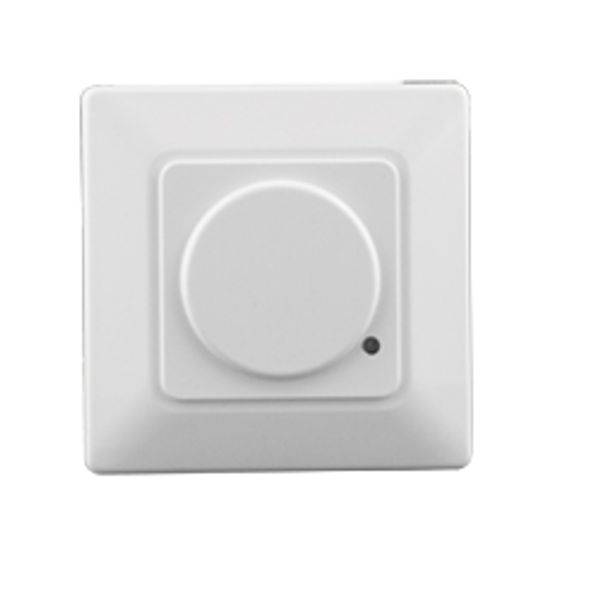

KDP8-MW - DETECTOR MW
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
28,96 €
EAN: 8426487493685
MPN: 0767821
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | KDP8-MW - DETECTOR MW |
| Brand | KOBAN |
| Categories |
Motion & Presence Sensors
|
| Country of origin | CN |
| Harmonized System Code | 9032 8900 90 |
| Mounting method | Other |
| Width | 80 mm |
| Model | Movement sensor |
| Height | 80 mm |
| Depth | 46.6 mm |
| Connection type | Screwed terminal |
| Frequency | 50-60 Hz |
| Max. switching power | 1200 W |
| Scan angle | 180 ° |
| Nominal voltage | - |
| Degree of protection (IP) | IP20 |
| Min. switch-on time | 10 s |
| Max. duty cycle | 12 min |
| Response value luminosity adjustable | No |
| Optimum mounting height | 1-1.8 m |
Packing details
| Packing level 1 | 8426487493685 |
Other Technical data
| Halogen free | No |
| Creep-under protection | No |
| Voltage type | AC |
| With remote control | No |
| Built-in width | 50 mm |
| Staircase monitoring | No |
| Bridging switch | No |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Response value sensitivity adjustable | Yes |
| Dim function with dimmer basic element | No |
| Response value luminosity | 3-2000 lx |
| Suitable for C-load | No |
| Diameter detection range on floor | 15 m |
| Remote operation | No |
| HVAC-control | No |
| Constant light control | No |
| Substation input | No |
| With signal unit | No |
| Teach-function for response value luminosity | No |
| Networkable | No |
| Forced switch off | No |
| Built-in length | 32 mm |
| With alarm function | No |
| Transparent | Yes |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | - ° |
| Pivoting range sensor, horizontal | - ° |
| Pivoting range sensor, vertical | - ° |
| Number of switching zones | 3 |
| IFTTT support available | No |
| Forced switch on | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Suitable for ceiling mounting | No |
| Anti-bacterial treatment | No |
Downloads
Description
Detector de movimiento por tecnología microondas, destinado a montaje empotrado en pared o caja de mecanismos. Válido para la conexión de todo tipo de cargas luminosas. Dispone de control manual para la elección del modo de funcionamiento de la carga luminosa asociada: auto/on/off. Presenta un campo de detección de hasta 15 metros de radio. Es utilizado principalmente para sustituir los tradicionales pulsadores de la luz en hogares o zonas comunes.
