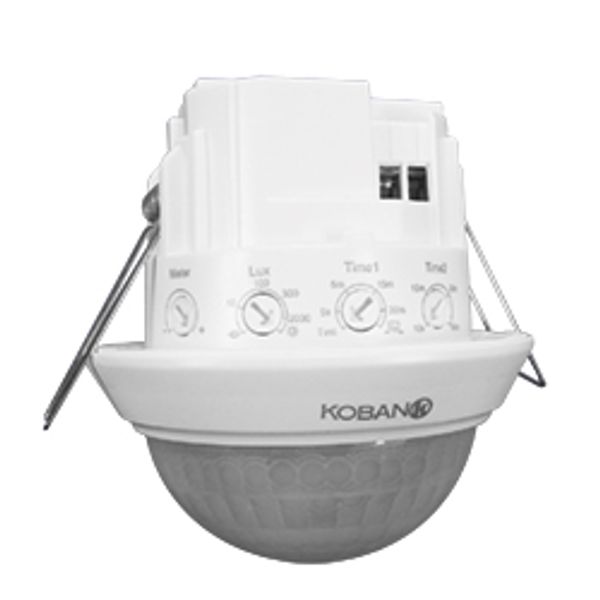

KDP4 - PIR DETECTOR
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
69,53 €
EAN: 8426487758807
MPN: 0775880
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | KDP4 - PIR DETECTOR |
| Brand | KOBAN |
| Categories |
Motion & Presence Sensors
|
| Country of origin | CN |
| Harmonized System Code | 9032 8900 90 |
| Mounting method | Flush mounted (plaster) |
| Model | Presence detector |
| Height | 104.4 mm |
| Connection type | Screwed terminal |
| Frequency | 50-60 Hz |
| Max. switching power | 2000 W |
| Scan angle | 360 ° |
| Nominal voltage | - |
| Degree of protection (IP) | IP44 |
| Min. switch-on time | 5 s |
| Max. duty cycle | 30 min |
| Response value luminosity adjustable | No |
| Optimum mounting height | 2.5 m |
Packing details
| Packing level 1 | 8426487758807 |
| Packing level 2 | 8426487758807 |
Other Technical data
| Halogen free | No |
| Creep-under protection | Yes |
| Voltage type | AC |
| With remote control | Yes |
| Diameter | 82 mm |
| Built-in diameter | 65 mm |
| Staircase monitoring | Yes |
| Bridging switch | No |
| Suitable for wireless transmission | No |
| Material quality | Thermoplastic |
| Material | Plastic |
| Response value sensitivity adjustable | No |
| Dim function with dimmer basic element | No |
| Response value luminosity | 10-2000 lx |
| Suitable for C-load | No |
| Diameter detection range on floor | 20 m |
| Remote operation | Yes |
| HVAC-control | Yes |
| Constant light control | Yes |
| Substation input | Yes |
| With signal unit | No |
| Teach-function for response value luminosity | No |
| Networkable | No |
| Forced switch off | No |
| Built-in length | 62.6 mm |
| With alarm function | No |
| Transparent | No |
| Animal zone | No |
| Surface finishing | Matt |
| Detection angle horizontal | - ° |
| Pivoting range sensor, horizontal | - ° |
| Pivoting range sensor, vertical | - ° |
| Number of switching zones | 4 |
| IFTTT support available | No |
| Forced switch on | Yes |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Suitable for ceiling mounting | Yes |
| Anti-bacterial treatment | No |
Downloads
Description
Detector de presencia por tecnología PIR, destinado a montaje empotrado en techo. Es ideal para grandes superficies (hasta 20 metros de diámetro) y dispone de dos canales de salida, tanto para el control de todo tipo de cargas luminosas como de sistemas de HVAC. Dispone de múltiples características como pueden ser el control remoto mediante mando a distancia opcional, función impulso?por todo ellos es de gran utilización en gimnasios, industrias, bibliotecas, salas de reunión.
